Backward Tracking, Quad-Refined Grid, Steady-State Flow
Application of a MODFLOW 6 particle-tracking (PRT) model and a MODPATH 7 (MP7) model to solve example 2 from the MODPATH 7 documentation.
This example problem adapts the flow system in example 1, consisting of two aquifers separated by a low conductivity confining layer, with an unstructured grid with a quad- refined region around the central well. A river still runs along the grid’s right-hand boundary.

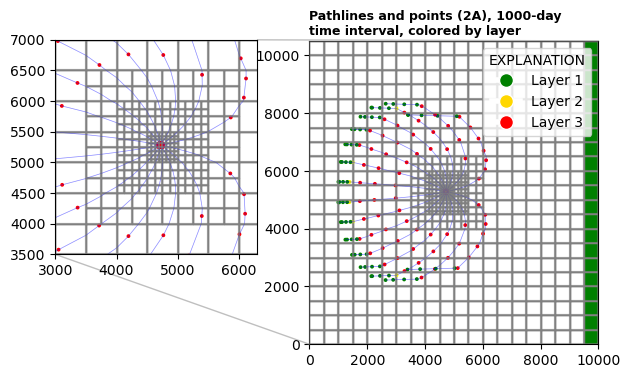

In part A, 16 particles are distributed evenly for release around the four horizontal faces of the well. To determine recharge points, particles are then tracked backwards to the water table.

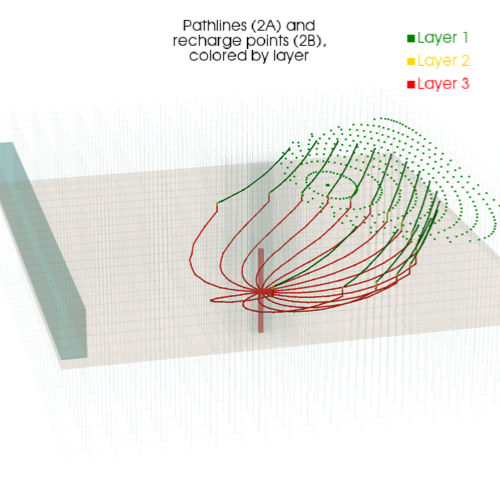

In part B, 100 particles are evenly distributed in a 10 x 10 square over the horizontal faces of the well, with 16 more release points on the well cell’s top face. Particles are again tracked backwards to determine the well’s capture area.
Initial setup
Import dependencies, define the example name and workspace, and read settings from environment variables.
[1]:
import pathlib as pl
from pprint import pformat
import flopy
import flopy.utils.binaryfile as bf
import git
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from flopy.mf6 import MFSimulation
from flopy.plot.styles import styles
from flopy.utils.gridgen import Gridgen
from flopy.utils.gridintersect import GridIntersect
from matplotlib.lines import Line2D
from modflow_devtools.misc import get_env, timed
from shapely.geometry import LineString, MultiPoint
# Example name and workspace paths. If this example is running
# in the git repository, use the folder structure described in
# the README. Otherwise just use the current working directory.
sim_name = "mp7-p02"
gwf_name = sim_name + "-gwf"
prt_name = sim_name + "-prt"
mp7_name = sim_name + "-mp7"
try:
root = pl.Path(git.Repo(".", search_parent_directories=True).working_dir)
except:
root = None
workspace = root / "examples" if root else pl.Path.cwd()
figs_path = root / "figures" if root else pl.Path.cwd()
sim_ws = workspace / sim_name
gwf_ws = sim_ws / "gwf"
prt_ws = sim_ws / "prt"
mp7_ws = sim_ws / "mp7"
gwf_ws.mkdir(exist_ok=True, parents=True)
prt_ws.mkdir(exist_ok=True, parents=True)
mp7_ws.mkdir(exist_ok=True, parents=True)
# Define output file names
headfile = f"{gwf_name}.hds"
budgetfile = f"{gwf_name}.cbb"
headfile_bkwd = f"{gwf_name}_bkwd.hds"
budgetfile_bkwd = f"{gwf_name}_bkwd.cbb"
budgetfile_prt = f"{prt_name}.cbb"
trackfile_prt = f"{prt_name}.trk"
trackhdrfile_prt = f"{prt_name}.trk.hdr"
trackcsvfile_prt = f"{prt_name}.trk.csv"
# Settings from environment variables
write = get_env("WRITE", True)
run = get_env("RUN", True)
plot = get_env("PLOT", True)
plot_show = get_env("PLOT_SHOW", True)
plot_save = get_env("PLOT_SAVE", True)
Define parameters
Define model units, parameters and other settings.
[2]:
# Model units
length_units = "feet"
time_units = "days"
# Model parameters
nper = 1 # Number of periods
nlay = 3 # Number of layers (base grid)
nrow = 21 # Number of rows (base grid)
ncol = 20 # Number of columns (base grid)
delr = 500.0 # Column width ($ft$)
delc = 500.0 # Row width ($ft$)
top = 400.0 # Top of the model ($ft$)
botm_str = "220.0, 200.0, 0.0" # Layer bottom elevations ($ft$)
porosity = 0.1 # Soil porosity (unitless)
rch = 0.005 # Recharge rate ($ft/d$)
kh_str = "50.0, 0.01, 200.0" # Horizontal hydraulic conductivity ($ft/d$)
kv_str = "10.0, 0.01, 20.0" # Vertical hydraulic conductivity ($ft/d$)
wel_q = -150000.0 # Well pumping rate ($ft^3/d$)
riv_h = 320.0 # River stage ($ft$)
riv_z = 317.0 # River bottom ($ft$)
riv_c = 1.0e5 # River conductance ($ft^2/d$)
# Time discretization
nstp = 1
perlen = 1000.0
tsmult = 1.0
tdis_rc = [(perlen, nstp, tsmult)]
# Parse bottom elevation and horiz/vert hydraulic cond.
botm = [float(value) for value in botm_str.split(",")]
kh = [float(value) for value in kh_str.split(",")]
kv = [float(value) for value in kv_str.split(",")]
# Cell types by layer
icelltype = [1, 0, 0]
# Well
wel_coords = [(4718.45, 5281.25)]
wel_q = [-150000.0]
welcells = []
# Recharge
rch = 0.005
rch_iface = 6
rch_iflowface = -1
# River
riv_h = 320.0
riv_z = 318.0
riv_c = 1.0e5
riv_iface = 6
riv_iflowface = -1
rivcells = []
Grid refinement
GRIDGEN can be used to create a quadpatch grid with a central refined region.
The grid will have 3 refinement levels. First, create the top-level (base) grid discretization.
[3]:
Lx = 10000.0
Ly = 10500.0
nlay = 3
nrow = 21
ncol = 20
delr = Lx / ncol
delc = Ly / nrow
top = 400
botm = [220, 200, 0]
ms = flopy.modflow.Modflow()
dis = flopy.modflow.ModflowDis(
ms,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
)
Refine the grid.
[4]:
# create Gridgen workspace
gridgen_ws = sim_ws / "gridgen"
gridgen_ws.mkdir(parents=True, exist_ok=True)
# create Gridgen object
g = Gridgen(ms.modelgrid, model_ws=gridgen_ws)
# add polygon for each refinement level
outer_polygon = [[(3500, 4000), (3500, 6500), (6000, 6500), (6000, 4000), (3500, 4000)]]
g.add_refinement_features([outer_polygon], "polygon", 1, range(nlay))
refshp0 = gridgen_ws / "rf0"
middle_polygon = [
[(4000, 4500), (4000, 6000), (5500, 6000), (5500, 4500), (4000, 4500)]
]
g.add_refinement_features([middle_polygon], "polygon", 2, range(nlay))
refshp1 = gridgen_ws / "rf1"
inner_polygon = [[(4500, 5000), (4500, 5500), (5000, 5500), (5000, 5000), (4500, 5000)]]
g.add_refinement_features([inner_polygon], "polygon", 3, range(nlay))
refshp2 = gridgen_ws / "rf2"
Build the grid and plot it with refinement levels superimposed.
[5]:
g.build(verbose=False)
grid_props = g.get_gridprops_vertexgrid()
disv_props = g.get_gridprops_disv()
grid = flopy.discretization.VertexGrid(**grid_props)
ncpl = disv_props["ncpl"]
top = disv_props["top"]
botm = disv_props["botm"]
nvert = disv_props["nvert"]
vertices = disv_props["vertices"]
cell2d = disv_props["cell2d"]
Define particle release points for the MODPATH 7 model.
[6]:
def get_particle_data(part):
nodew = ncpl * 2 + welcells[0]
if part == "A":
pcoord = np.array(
[
[0.000, 0.125, 0.500],
[0.000, 0.375, 0.500],
[0.000, 0.625, 0.500],
[0.000, 0.875, 0.500],
[1.000, 0.125, 0.500],
[1.000, 0.375, 0.500],
[1.000, 0.625, 0.500],
[1.000, 0.875, 0.500],
[0.125, 0.000, 0.500],
[0.375, 0.000, 0.500],
[0.625, 0.000, 0.500],
[0.875, 0.000, 0.500],
[0.125, 1.000, 0.500],
[0.375, 1.000, 0.500],
[0.625, 1.000, 0.500],
[0.875, 1.000, 0.500],
]
)
return flopy.modpath.ParticleData(
[nodew for _ in range(pcoord.shape[0])],
structured=False,
localx=pcoord[:, 0],
localy=pcoord[:, 1],
localz=pcoord[:, 2],
drape=0,
)
else:
return flopy.modpath.NodeParticleData(
subdivisiondata=flopy.modpath.FaceDataType(
drape=0,
verticaldivisions1=10,
horizontaldivisions1=10,
verticaldivisions2=10,
horizontaldivisions2=10,
verticaldivisions3=10,
horizontaldivisions3=10,
verticaldivisions4=10,
horizontaldivisions4=10,
rowdivisions5=0,
columndivisions5=0,
rowdivisions6=4,
columndivisions6=4,
),
nodes=nodew,
)
Model setup
Define functions to build models, write input files, and run the simulation.
[7]:
def build_gwf_sim():
global welcells, rivcells
# Instantiate the MODFLOW 6 simulation object
sim = flopy.mf6.MFSimulation(
sim_name=gwf_name, exe_name="mf6", version="mf6", sim_ws=gwf_ws
)
# Instantiate the MODFLOW 6 temporal discretization package
flopy.mf6.ModflowTdis(
sim, pname="tdis", time_units="DAYS", perioddata=tdis_rc, nper=len(tdis_rc)
)
# Instantiate the MODFLOW 6 gwf (groundwater-flow) model
gwf = flopy.mf6.ModflowGwf(
sim, modelname=gwf_name, model_nam_file="{}.nam".format(gwf_name)
)
gwf.name_file.save_flows = True
# Instantiate the MODFLOW 6 gwf discretization package
flopy.mf6.ModflowGwfdisv(
gwf,
length_units=length_units,
**disv_props,
)
# GridIntersect object for setting up boundary conditions
ix = GridIntersect(gwf.modelgrid, method="vertex", rtree=True)
# Instantiate the MODFLOW 6 gwf initial conditions package
flopy.mf6.ModflowGwfic(gwf, pname="ic", strt=riv_h)
# Instantiate the MODFLOW 6 gwf node property flow package
flopy.mf6.ModflowGwfnpf(
gwf,
xt3doptions=[("xt3d")],
icelltype=icelltype,
k=kh,
k33=kv,
save_saturation=True,
save_specific_discharge=True,
)
# Instantiate the MODFLOW 6 gwf recharge package
flopy.mf6.ModflowGwfrcha(
gwf,
recharge=rch,
auxiliary=["iface", "iflowface"],
aux=[rch_iface, rch_iflowface],
)
# Instantiate the MODFLOW 6 gwf well package
welcells = ix.intersects(MultiPoint(wel_coords))
welcells = [icpl for (icpl,) in welcells]
welspd = [[(2, icpl), wel_q[idx]] for idx, icpl in enumerate(welcells)]
flopy.mf6.ModflowGwfwel(gwf, print_input=True, stress_period_data=welspd)
# Instantiate the MODFLOW 6 gwf river package
riverline = [(Lx - 1.0, Ly), (Lx - 1.0, 0.0)]
rivcells = ix.intersects(LineString(riverline))
rivcells = [icpl for (icpl,) in rivcells]
rivspd = [
[(0, icpl), riv_h, riv_c, riv_z, riv_iface, riv_iflowface] for icpl in rivcells
]
flopy.mf6.ModflowGwfriv(
gwf, stress_period_data=rivspd, auxiliary=[("iface", "iflowface")]
)
# Instantiate the MODFLOW 6 gwf output control package
headfile = "{}.hds".format(gwf_name)
head_record = [headfile]
budgetfile = "{}.cbb".format(gwf_name)
budget_record = [budgetfile]
flopy.mf6.ModflowGwfoc(
gwf,
pname="oc",
budget_filerecord=budget_record,
head_filerecord=head_record,
headprintrecord=[("COLUMNS", 10, "WIDTH", 15, "DIGITS", 6, "GENERAL")],
saverecord=[("HEAD", "ALL"), ("BUDGET", "ALL")],
printrecord=[("HEAD", "ALL"), ("BUDGET", "ALL")],
)
# Create an iterative model solution (IMS) for the MODFLOW 6 gwf model
ims = flopy.mf6.ModflowIms(
sim,
pname="ims",
print_option="SUMMARY",
complexity="SIMPLE",
outer_dvclose=1.0e-5,
outer_maximum=100,
under_relaxation="NONE",
inner_maximum=100,
inner_dvclose=1.0e-6,
rcloserecord=0.1,
linear_acceleration="BICGSTAB",
scaling_method="NONE",
reordering_method="NONE",
relaxation_factor=0.99,
)
sim.register_ims_package(ims, [gwf.name])
return sim
def build_prt_sim():
global welcells, rivcells
# Instantiate the MODFLOW 6 simulation object
sim = flopy.mf6.MFSimulation(
sim_name=prt_name, exe_name="mf6", version="mf6", sim_ws=prt_ws
)
# Instantiate the MODFLOW 6 temporal discretization package
flopy.mf6.ModflowTdis(
sim, pname="tdis", time_units="DAYS", perioddata=tdis_rc, nper=len(tdis_rc)
)
# Instantiate the MODFLOW 6 prt model
prt = flopy.mf6.ModflowPrt(
sim, modelname=prt_name, model_nam_file="{}.nam".format(prt_name)
)
# Instantiate the MODFLOW 6 prt discretization package
flopy.mf6.ModflowGwfdisv(
prt,
length_units=length_units,
**disv_props,
)
# Instantiate the MODFLOW 6 prt model input package
flopy.mf6.ModflowPrtmip(prt, pname="mip", porosity=porosity)
def add_prp(part):
prpname = f"prp2{part}"
prpfilename = f"{prt_name}_2{part}.prp"
# Set particle release point data according to the scenario
releasepts = list(get_particle_data(part).to_prp(grid))
# Instantiate the MODFLOW 6 prt particle release point (prp) package
pd = {0: ["FIRST"], 1: []}
flopy.mf6.ModflowPrtprp(
prt,
pname=prpname,
filename=prpfilename,
nreleasepts=len(releasepts),
packagedata=releasepts,
perioddata=pd,
)
add_prp("A")
add_prp("B")
# Instantiate the MODFLOW 6 prt output control package
budgetfile = "{}.bud".format(prt_name)
trackfile = "{}.trk".format(prt_name)
trackcsvfile = "{}.trk.csv".format(prt_name)
budget_record = [budgetfile]
track_record = [trackfile]
trackcsv_record = [trackcsvfile]
tracktimes = list(range(0, 72000, 1000))
flopy.mf6.ModflowPrtoc(
prt,
pname="oc",
budget_filerecord=budget_record,
track_filerecord=track_record,
trackcsv_filerecord=trackcsv_record,
track_all=False,
track_timesrecord=tracktimes,
saverecord=[("BUDGET", "ALL")],
)
# Instantiate the MODFLOW 6 prt flow model interface
# using "time-reversed" budget and head files
pd = [
("GWFHEAD", headfile_bkwd),
("GWFBUDGET", budgetfile_bkwd),
]
flopy.mf6.ModflowPrtfmi(prt, packagedata=pd)
# Create an explicit model solution (EMS) for the MODFLOW 6 prt model
ems = flopy.mf6.ModflowEms(
sim,
pname="ems",
filename="{}.ems".format(prt_name),
)
sim.register_solution_package(ems, [prt.name])
return sim
def build_mp7_sim(gwf_model):
# Create particle groups
pga = flopy.modpath.ParticleGroup(
particlegroupname="PG2A",
particledata=get_particle_data("A"),
filename="a.sloc",
)
pgb = flopy.modpath.ParticleGroupNodeTemplate(
particlegroupname="PG2B",
particledata=get_particle_data("B"),
filename="b.sloc",
)
# Instantiate the MODPATH 7 simulation object
mp7 = flopy.modpath.Modpath7(
modelname=mp7_name,
flowmodel=gwf_model,
exe_name="mp7",
model_ws=mp7_ws,
budgetfilename=budgetfile,
headfilename=headfile,
)
# Instantiate the MODPATH 7 basic data
flopy.modpath.Modpath7Bas(mp7, porosity=porosity)
# Instantiate the MODPATH 7 simulation data
flopy.modpath.Modpath7Sim(
mp7,
simulationtype="combined",
trackingdirection="backward",
weaksinkoption="pass_through",
weaksourceoption="pass_through",
referencetime=0.0,
stoptimeoption="extend",
timepointdata=[500, 1000.0],
particlegroups=[pga, pgb],
)
return mp7
def build_models():
gwf_sim = build_gwf_sim()
prt_sim = build_prt_sim()
mp7_sim = build_mp7_sim(gwf_sim.get_model(gwf_name))
return gwf_sim, prt_sim, mp7_sim
def write_models(*sims, silent=False):
for sim in sims:
if isinstance(sim, MFSimulation):
sim.write_simulation(silent=silent)
else:
sim.write_input()
@timed
def run_models(*sims, silent=False):
for sim in sims:
if isinstance(sim, MFSimulation):
success, buff = sim.run_simulation(silent=silent, report=True)
else:
success, buff = sim.run_model(silent=silent, report=True)
assert success, pformat(buff)
if "gwf" in sim.name:
# Reverse budget and head files for backward tracking
reverse_budgetfile(gwf_ws / budgetfile, prt_ws / budgetfile_bkwd, sim.tdis)
reverse_headfile(gwf_ws / headfile, prt_ws / headfile_bkwd, sim.tdis)
Because this problem tracks particles backwards, we need to reverse the head and budget files after running the groundwater flow model and before running the particle tracking model. Define functions to do this.
[8]:
def reverse_budgetfile(fpth, rev_fpth, tdis):
f = bf.CellBudgetFile(fpth, tdis=tdis)
f.reverse(rev_fpth)
def reverse_headfile(fpth, rev_fpth, tdis):
f = bf.HeadFile(fpth, tdis=tdis)
f.reverse(rev_fpth)
Define a function to load pathline data from MODFLOW 6 PRT and MODPATH 7 pathline files.
[9]:
def get_mf6_pathlines(path):
# load mf6 pathlines
mf6pl = pd.read_csv(path)
# index by particle group and particle ID
mf6pl.set_index(["iprp", "irpt"], drop=False, inplace=True)
# add column mapping particle group to subproblem name (1: A, 2: B)
mf6pl["subprob"] = mf6pl.apply(lambda row: "A" if row.iprp == 1 else "B", axis=1)
# add release time and termination time columns
mf6pl["t0"] = (
mf6pl.groupby(level=["iprp", "irpt"])
.apply(lambda x: x.t.min())
.to_frame(name="t0")
.t0
)
mf6pl["tt"] = (
mf6pl.groupby(level=["iprp", "irpt"])
.apply(lambda x: x.t.max())
.to_frame(name="tt")
.tt
)
# add markercolor column, color-coding by layer for plots
mf6pl["mc"] = mf6pl.apply(
lambda row: "green" if row.ilay == 1 else "yellow" if row.ilay == 2 else "red",
axis=1,
)
return mf6pl
def get_mp7_pathlines(path, gwf_model):
# load mp7 pathlines, letting flopy determine capture areas
mp7plf = flopy.utils.PathlineFile(path)
mp7pl = pd.DataFrame(
mp7plf.get_destination_pathline_data(
list(range(gwf_model.modelgrid.nnodes)), to_recarray=True
)
)
# index by particle group and particle ID
mp7pl.set_index(["particlegroup", "sequencenumber"], drop=False, inplace=True)
# convert indices to 1-based (flopy converts them to 0-based, but PRT uses 1-based, so do the same for consistency)
kijnames = [
"k",
"node",
"particleid",
"particlegroup",
"particleidloc",
"sequencenumber",
]
for n in kijnames:
mp7pl[n] += 1
# add column mapping particle group to subproblem name (1: A, 2: B)
mp7pl["subprob"] = mp7pl.apply(
lambda row: (
"A" if row.particlegroup == 1 else "B" if row.particlegroup == 2 else pd.NA
),
axis=1,
)
# add release time and termination time columns
mp7pl["t0"] = (
mp7pl.groupby(level=["particlegroup", "sequencenumber"])
.apply(lambda x: x.time.min())
.to_frame(name="t0")
.t0
)
mp7pl["tt"] = (
mp7pl.groupby(level=["particlegroup", "sequencenumber"])
.apply(lambda x: x.time.max())
.to_frame(name="tt")
.tt
)
# add markercolor column, color-coding by layer for plots
mp7pl["mc"] = mp7pl.apply(
lambda row: "green" if row.k == 1 else "yellow" if row.k == 2 else "red", axis=1
)
return mp7pl
def get_mp7_timeseries(path, gwf_model):
# load mp7 pathlines, letting flopy determine capture areas
mp7tsf = flopy.utils.TimeseriesFile(path)
mp7ts = pd.DataFrame(
mp7tsf.get_destination_timeseries_data(list(range(gwf_model.modelgrid.nnodes)))
)
# index by particle group and particle ID
mp7ts.set_index(["particlegroup", "particleid"], drop=False, inplace=True)
# convert indices to 1-based (flopy converts them to 0-based, but PRT uses 1-based, so do the same for consistency)
kijnames = [
"k",
"node",
"particleid",
"particlegroup",
"particleidloc",
]
for n in kijnames:
mp7ts[n] += 1
# add column mapping particle group to subproblem name (1: A, 2: B)
mp7ts["subprob"] = mp7ts.apply(
lambda row: (
"A" if row.particlegroup == 1 else "B" if row.particlegroup == 2 else pd.NA
),
axis=1,
)
# add release time and termination time columns
mp7ts["t0"] = (
mp7ts.groupby(level=["particlegroup", "particleid"])
.apply(lambda x: x.time.min())
.to_frame(name="t0")
.t0
)
mp7ts["tt"] = (
mp7ts.groupby(level=["particlegroup", "particleid"])
.apply(lambda x: x.time.max())
.to_frame(name="tt")
.tt
)
# add markercolor column, color-coding by layer for plots
mp7ts["mc"] = mp7ts.apply(
lambda row: "green" if row.k == 1 else "yellow" if row.k == 2 else "red", axis=1
)
return mp7ts
def get_mp7_endpoints(path, gwf_model):
# load mp7 pathlines, letting flopy determine capture areas
mp7epf = flopy.utils.EndpointFile(path)
mp7ep = pd.DataFrame(
mp7epf.get_destination_endpoint_data(list(range(gwf_model.modelgrid.nnodes)))
)
# index by particle group and particle ID
mp7ep.set_index(["particlegroup", "particleid"], drop=False, inplace=True)
# convert indices to 1-based (flopy converts them to 0-based, but PRT uses 1-based, so do the same for consistency)
kijnames = [
"k",
"node",
"particleid",
"particlegroup",
"particleidloc",
]
for n in kijnames:
mp7ep[n] += 1
# add column mapping particle group to subproblem name (1: A, 2: B)
mp7ep["subprob"] = mp7ep.apply(
lambda row: (
"A" if row.particlegroup == 1 else "B" if row.particlegroup == 2 else pd.NA
),
axis=1,
)
# add release time and termination time columns
mp7ep["t0"] = (
mp7ep.groupby(level=["particlegroup", "particleid"])
.apply(lambda x: x.time.min())
.to_frame(name="t0")
.t0
)
mp7ep["tt"] = (
mp7ep.groupby(level=["particlegroup", "particleid"])
.apply(lambda x: x.time.max())
.to_frame(name="tt")
.tt
)
# add markercolor column, color-coding by layer for plots
mp7ep["mc"] = mp7ep.apply(
lambda row: "green" if row.k == 1 else "yellow" if row.k == 2 else "red", axis=1
)
return mp7ep
Plotting results
Define functions to plot model results.
[10]:
# colormap for boundary locations
cmapbd = mpl.colors.ListedColormap(
[
"r",
"g",
]
)
# time series point colors by layer
colors = ["green", "orange", "red"]
# figure sizes
figure_size_solo = (7, 7)
figure_size_compare = (7, 5)
def plot_nodes_and_vertices(gwf, ax):
"""
Plot cell nodes and vertices (and IDs) on a zoomed inset
"""
ax.set_aspect("equal")
# set zoom area
xmin, xmax = 2050, 4800
ymin, ymax = 5200, 7550
ax.set_xlim([xmin, xmax])
ax.set_ylim([ymin, ymax])
# create map view plot
pmv = flopy.plot.PlotMapView(gwf, ax=ax)
pmv.plot_grid(edgecolor="black", alpha=0.25)
styles.heading(ax=ax, heading="Nodes and vertices (one-based)", fontsize=8)
ax.set_xlim([xmin, xmax])
ax.set_ylim([ymin, ymax])
# plot vertices
mg = gwf.modelgrid
verts = mg.verts
ax.plot(verts[:, 0], verts[:, 1], "bo", alpha=0.25, ms=2)
for i in range(ncpl):
x, y = verts[i, 0], verts[i, 1]
if xmin <= x <= xmax and ymin <= y <= ymax:
ax.annotate(str(i + 1), verts[i, :], color="b", alpha=0.5)
# plot nodes
xc, yc = mg.get_xcellcenters_for_layer(0), mg.get_ycellcenters_for_layer(0)
for i in range(ncpl):
x, y = xc[i], yc[i]
ax.plot(x, y, "o", color="grey", alpha=0.25, ms=2)
if xmin <= x <= xmax and ymin <= y <= ymax:
ax.annotate(str(i + 1), (x, y), color="grey", alpha=0.5)
# plot well
ax.plot(wel_coords[0][0], wel_coords[0][1], "ro")
# adjust left margin to compensate for inset
plt.subplots_adjust(left=0.45)
# create legend
ax.legend(
handles=[
Line2D(
[0],
[0],
marker="o",
color="w",
label="Vertex",
markerfacecolor="blue",
markersize=10,
),
Line2D(
[0],
[0],
marker="o",
color="w",
label="Node",
markerfacecolor="grey",
markersize=10,
),
],
loc="upper left",
)
def plot_head(gwf, head, ibd):
with styles.USGSPlot():
fig = plt.figure(figsize=figure_size_solo)
fig.tight_layout()
ax = fig.add_subplot(1, 1, 1, aspect="equal")
ax.set_xlim(0, Lx)
ax.set_ylim(0, Ly)
ilay = 2
cint = 0.25
hmin = head[ilay, 0, :].min()
hmax = head[ilay, 0, :].max()
styles.heading(ax=ax, heading="Head, layer {}".format(ilay + 1))
mm = flopy.plot.PlotMapView(gwf, ax=ax, layer=ilay)
mm.plot_bc("WEL", plotAll=True)
mm.plot_bc("RIV", plotAll=True, color="teal")
mm.plot_grid(alpha=0.25)
# create inset
axins = ax.inset_axes([-0.8, 0.25, 0.7, 0.9])
plot_nodes_and_vertices(gwf, axins)
ax.indicate_inset_zoom(axins)
pc = mm.plot_array(head[:, 0, :], edgecolor="black", alpha=0.5)
cb = plt.colorbar(pc, shrink=0.25, pad=0.1)
cb.ax.set_xlabel(r"Head ($m$)")
if ibd is not None:
mm.plot_array(ibd, cmap=cmapbd, edgecolor="gray")
# create legend
ax.legend(
handles=[
mpl.patches.Patch(color="red", label="Well"),
mpl.patches.Patch(color="teal", label="River"),
],
loc="upper left",
)
levels = np.arange(np.floor(hmin), np.ceil(hmax) + cint, cint)
cs = mm.contour_array(head[:, 0, :], colors="white", levels=levels)
plt.clabel(cs, fmt="%.1f", colors="white", fontsize=11)
if plot_show:
plt.show()
if plot_save:
fig.savefig(figs_path / "{}-head".format(sim_name))
def plot_points(ax, gwf, data):
ax.set_aspect("equal")
mm = flopy.plot.PlotMapView(model=gwf, ax=ax)
mm.plot_grid(alpha=0.25)
return ax.scatter(
data["x"],
data["y"],
color=data["mc"],
s=3,
)
def plot_tracks(
ax, gwf, title=None, ibd=None, pathlines=None, timeseries=None, endpoints=None
):
ax.set_aspect("equal")
ax.set_xlim(0, Lx)
ax.set_ylim(0, Ly)
if title is not None:
ax.set_title(title, fontsize=12)
mm = flopy.plot.PlotMapView(model=gwf, ax=ax)
mm.plot_grid(alpha=0.25)
if ibd is not None:
mm.plot_array(ibd, cmap=cmapbd, edgecolor="gray")
pts = []
if pathlines is not None:
pts.append(
mm.plot_pathline(
pathlines, layer="all", colors=["blue"], lw=0.5, ms=1, alpha=0.25
)
)
if timeseries is None and endpoints is None:
plot_points(ax, gwf, pathlines[pathlines.ireason != 1])
if timeseries is not None:
for k in range(0, nlay - 1):
pts.append(mm.plot_timeseries(timeseries, layer=k, lw=0, ms=1))
plot_points(ax, gwf, timeseries)
if endpoints is not None:
pts.append(
mm.plot_endpoint(endpoints, direction="ending", colorbar=False, shrink=0.25)
)
return pts[0] if len(pts) == 1 else pts
def plot_pathlines_and_points(gwf, mf6pl, ibd, title=None):
fig, ax = plt.subplots(figsize=figure_size_compare)
fig.tight_layout()
plot_tracks(ax, gwf, ibd=ibd, pathlines=mf6pl)
axins = ax.inset_axes([-0.88, 0.2, 0.7, 0.9])
plot_tracks(axins, gwf, ibd=ibd, pathlines=mf6pl)
ax.indicate_inset_zoom(axins)
xmin, xmax = 3000, 6300
ymin, ymax = 3500, 7000
axins.set_xlim([xmin, xmax])
axins.set_ylim([ymin, ymax])
plt.subplots_adjust(left=0.55)
ax.legend(
title="EXPLANATION",
handles=[
Line2D(
[0],
[0],
marker="o",
markersize=10,
markerfacecolor="green",
color="w",
lw=4,
label="Layer 1",
),
Line2D(
[0],
[0],
marker="o",
markersize=10,
markerfacecolor="gold",
color="w",
lw=4,
label="Layer 2",
),
Line2D(
[0],
[0],
marker="o",
markersize=10,
markerfacecolor="red",
color="w",
lw=4,
label="Layer 3",
),
],
)
if title is not None:
styles.heading(ax, title)
if plot_show:
plt.show()
if plot_save:
fig.savefig(figs_path / "{}-paths".format(sim_name))
def plot_2b(gwf, mf6endpoints, ibd, title=None):
fig, ax = plt.subplots(figsize=figure_size_compare)
pts = plot_tracks(ax, gwf, ibd=ibd, endpoints=mf6endpoints)
if title is not None:
styles.heading(ax, title)
cax = fig.add_axes([0.4, 0.12, 0.2, 0.01])
cb = plt.colorbar(pts, cax=cax, orientation="horizontal", shrink=0.25)
cb.set_label("Travel time (days)")
plt.subplots_adjust(bottom=0.2)
if plot_show:
plt.show()
if plot_save:
fig.savefig(figs_path / "{}-endpts".format(sim_name))
def plot_3d(gwf, pathlines, endpoints=None, title=None):
import pyvista as pv
from flopy.export.vtk import Vtk
pv.set_plot_theme("document")
axes = pv.Axes(show_actor=False, actor_scale=2.0, line_width=5)
vert_exag = 10
pathlines = pathlines.to_records(index=False)
vtk = Vtk(model=gwf, binary=False, vertical_exageration=vert_exag, smooth=False)
vtk.add_model(gwf)
vtk.add_pathline_points(pathlines)
gwf_mesh, prt_mesh = vtk.to_pyvista()
riv_mesh = pv.Box(
bounds=[
gwf.modelgrid.extent[1] - delc,
gwf.modelgrid.extent[1],
gwf.modelgrid.extent[2],
gwf.modelgrid.extent[3],
220 * vert_exag,
gwf.output.head().get_data()[(0, 0, ncol - 1)] * vert_exag,
]
)
wel_mesh = pv.Box(bounds=(4700, 4800, 5200, 5300, 0, 200 * vert_exag))
bed_mesh = pv.Box(
bounds=[
gwf.modelgrid.extent[0],
gwf.modelgrid.extent[1],
gwf.modelgrid.extent[2],
gwf.modelgrid.extent[3],
200 * vert_exag,
220 * vert_exag,
]
)
gwf_mesh.rotate_z(-30, point=axes.origin, inplace=True)
gwf_mesh.rotate_y(-10, point=axes.origin, inplace=True)
gwf_mesh.rotate_x(10, point=axes.origin, inplace=True)
prt_mesh.rotate_z(-30, point=axes.origin, inplace=True)
prt_mesh.rotate_y(-10, point=axes.origin, inplace=True)
prt_mesh.rotate_x(10, point=axes.origin, inplace=True)
riv_mesh.rotate_z(-30, point=axes.origin, inplace=True)
riv_mesh.rotate_y(-10, point=axes.origin, inplace=True)
riv_mesh.rotate_x(10, point=axes.origin, inplace=True)
wel_mesh.rotate_z(-30, point=axes.origin, inplace=True)
wel_mesh.rotate_y(-10, point=axes.origin, inplace=True)
wel_mesh.rotate_x(10, point=axes.origin, inplace=True)
bed_mesh.rotate_z(-30, point=axes.origin, inplace=True)
bed_mesh.rotate_y(-10, point=axes.origin, inplace=True)
bed_mesh.rotate_x(10, point=axes.origin, inplace=True)
plot_endpoints = False
if endpoints is not None:
plot_endpoints = True
endpoints = endpoints.to_records(index=False)
endpoints["z"] = endpoints["z"] * vert_exag
eps_mesh = pv.PolyData(np.array(tuple(map(tuple, endpoints[["x", "y", "z"]]))))
eps_mesh.rotate_z(-30, point=axes.origin, inplace=True)
eps_mesh.rotate_y(-10, point=axes.origin, inplace=True)
eps_mesh.rotate_x(10, point=axes.origin, inplace=True)
def _plot(screenshot=False):
p = pv.Plotter(
window_size=[500, 500],
off_screen=screenshot,
notebook=False if screenshot else None,
)
p.enable_anti_aliasing()
if title is not None:
p.add_title(title, font_size=7)
p.add_mesh(gwf_mesh, opacity=0.025, style="wireframe")
p.add_mesh(
prt_mesh,
scalars="k" if "k" in prt_mesh.point_data else "ilay",
cmap=["green", "gold", "red"],
point_size=4,
line_width=3,
render_points_as_spheres=True,
render_lines_as_tubes=True,
smooth_shading=True,
)
p.remove_scalar_bar()
if plot_endpoints:
p.add_mesh(
eps_mesh,
scalars=endpoints.k.ravel(),
cmap=["green", "gold", "red"],
point_size=4,
)
p.remove_scalar_bar()
p.add_mesh(riv_mesh, color="teal", opacity=0.2)
p.add_mesh(wel_mesh, color="red", opacity=0.3)
p.add_mesh(bed_mesh, color="tan", opacity=0.1)
p.add_legend(
labels=[("Layer 1", "green"), ("Layer 2", "gold"), ("Layer 3", "red")],
bcolor="white",
face="r",
size=(0.15, 0.15),
)
p.camera.zoom(2)
p.show()
if screenshot:
p.screenshot(figs_path / f"{sim_name}-paths-3d.png")
if plot_show:
_plot()
if plot_save:
_plot(screenshot=True)
def load_head():
head_file = flopy.utils.HeadFile(gwf_ws / (gwf_name + ".hds"))
return head_file.get_data()
def get_ibound():
ibd = np.zeros((ncpl), dtype=int)
ibd[np.array(welcells)] = 1
ibd[np.array(rivcells)] = 2
return np.ma.masked_equal(ibd, 0)
def plot_results(gwf_sim):
gwf_model = gwf_sim.get_model(gwf_name)
ibound = get_ibound()
mf6pl = get_mf6_pathlines(prt_ws / trackcsvfile_prt)
mf6ep = mf6pl[mf6pl.ireason == 3] # termination event
mp7pl = get_mp7_pathlines(mp7_ws / f"{mp7_name}.mppth", gwf_model)
mp7ts = get_mp7_timeseries(mp7_ws / f"{mp7_name}.timeseries", gwf_model)
mp7ep = get_mp7_endpoints(mp7_ws / f"{mp7_name}.mpend", gwf_model)
# plot_head(gwf_model, load_head(), ibound)
plot_pathlines_and_points(
gwf_model,
mf6pl=mf6pl[mf6pl.subprob == "A"],
title="Pathlines and points (2A), 1000-day\ntime interval, colored by layer",
ibd=ibound,
)
plot_3d(
gwf_model,
pathlines=mp7pl[mp7pl.subprob == "A"],
endpoints=mp7ep,
title="Pathlines (2A) and\nrecharge points (2B),\ncolored by layer",
)
plot_2b(
gwf_model,
mf6endpoints=mf6ep[mf6ep.subprob == "B"],
title="Recharge points (2B), colored by travel time",
ibd=ibound,
)
Running the example
Define and invoke a function to run the example scenario, then plot results.
[11]:
def scenario(silent=False):
gwf_sim, prt_sim, mp7_sim = build_models()
if write:
write_models(gwf_sim, prt_sim, mp7_sim, silent=silent)
if run:
run_models(gwf_sim, prt_sim, mp7_sim, silent=silent)
if plot:
plot_results(gwf_sim)
# We are now ready to run the example problem. Subproblems 2A and 2B are solved by a single MODFLOW 6 run and a single MODPATH 7 run, so they are included under one "scenario". Each of the two subproblems is represented by its own particle release package (for MODFLOW 6) or particle group (for MODPATH 7).
scenario()
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ims...
writing model mp7-p02-gwf...
writing model name file...
writing package disv...
writing package ic...
writing package npf...
writing package rcha_0...
writing package wel_0...
INFORMATION: maxbound in ('gwf6', 'wel', 'dimensions') changed to 1 based on size of stress_period_data
writing package riv_0...
INFORMATION: maxbound in ('gwf6', 'riv', 'dimensions') changed to 21 based on size of stress_period_data
writing package oc...
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ems...
writing model mp7-p02-prt...
writing model name file...
writing package disv...
writing package mip...
writing package prp2a...
writing package prp2b...
writing package oc...
writing package fmi...
FloPy is using the following executable to run the model: ../../../../../../.local/bin/modflow/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.5.0.dev2 (preliminary) 05/12/2024
***DEVELOP MODE***
MODFLOW 6 compiled May 12 2024 02:35:27 with Intel(R) Fortran Intel(R) 64
Compiler Classic for applications running on Intel(R) 64, Version 2021.7.0
Build 20220726_000000
This software is preliminary or provisional and is subject to
revision. It is being provided to meet the need for timely best
science. The software has not received final approval by the U.S.
Geological Survey (USGS). No warranty, expressed or implied, is made
by the USGS or the U.S. Government as to the functionality of the
software and related material nor shall the fact of release
constitute any such warranty. The software is provided on the
condition that neither the USGS nor the U.S. Government shall be held
liable for any damages resulting from the authorized or unauthorized
use of the software.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2024/05/13 11:30:19
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2024/05/13 11:30:20
Elapsed run time: 0.106 Seconds
Normal termination of simulation.
FloPy is using the following executable to run the model: ../../../../../../.local/bin/modflow/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.5.0.dev2 (preliminary) 05/12/2024
***DEVELOP MODE***
MODFLOW 6 compiled May 12 2024 02:35:27 with Intel(R) Fortran Intel(R) 64
Compiler Classic for applications running on Intel(R) 64, Version 2021.7.0
Build 20220726_000000
This software is preliminary or provisional and is subject to
revision. It is being provided to meet the need for timely best
science. The software has not received final approval by the U.S.
Geological Survey (USGS). No warranty, expressed or implied, is made
by the USGS or the U.S. Government as to the functionality of the
software and related material nor shall the fact of release
constitute any such warranty. The software is provided on the
condition that neither the USGS nor the U.S. Government shall be held
liable for any damages resulting from the authorized or unauthorized
use of the software.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2024/05/13 11:30:20
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2024/05/13 11:30:20
Elapsed run time: 0.248 Seconds
Normal termination of simulation.
FloPy is using the following executable to run the model: ../../../../../../.local/bin/modflow/mp7
MODPATH Version 7.2.001
Program compiled Feb 19 2024 14:21:54 with IFORT compiler (ver. 20.21.7)
Run particle tracking simulation ...
Processing Time Step 1 Period 1. Time = 1.00000E+03 Steady-state flow
Particle Summary:
0 particles are pending release.
0 particles remain active.
432 particles terminated at boundary faces.
0 particles terminated at weak sink cells.
0 particles terminated at weak source cells.
0 particles terminated at strong source/sink cells.
0 particles terminated in cells with a specified zone number.
0 particles were stranded in inactive or dry cells.
0 particles were unreleased.
0 particles have an unknown status.
Normal termination.
run_models took 621.83 ms
/opt/hostedtoolcache/Python/3.9.19/x64/lib/python3.9/site-packages/pyvista/jupyter/notebook.py:34: UserWarning: Failed to use notebook backend:
No module named 'trame'
Falling back to a static output.
warnings.warn(
