Jacob (1939) elastic aquifer loading example
This problem simulates elastic compaction of aquifer materials in response to the loading of an aquifer by a passing train. Water-level responses were simulated for an eastbound train leaving the Smithtown Station in Long Island, New York at 13:04 on April 23, 1937
Initial setup
Import dependencies, define the example name and workspace, and read settings from environment variables.
[1]:
import datetime
import os
import pathlib as pl
import flopy
import git
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
import pooch
from flopy.plot.styles import styles
from modflow_devtools.misc import get_env, timed
# Example name and workspace paths. If this example is running
# in the git repository, use the folder structure described in
# the README. Otherwise just use the current working directory.
sim_name = "ex-gwf-csub-p01"
try:
root = pl.Path(git.Repo(".", search_parent_directories=True).working_dir)
except:
root = None
workspace = root / "examples" if root else pl.Path.cwd()
figs_path = root / "figures" if root else pl.Path.cwd()
data_path = root / "data" / sim_name if root else pl.Path.cwd()
# Settings from environment variables
write = get_env("WRITE", True)
run = get_env("RUN", True)
plot = get_env("PLOT", True)
plot_show = get_env("PLOT_SHOW", True)
plot_save = get_env("PLOT_SAVE", True)
Define parameters
Define model units, parameters and other settings.
[2]:
# Model units
length_units = "meters"
time_units = "seconds"
# Simulation starting date and time
dstart = datetime.datetime(1937, 4, 23, 13, 5, 55)
# Model parameters
nper = 2 # Number of periods
nlay = 3 # Number of layers
ncol = 35 # Number of columns
nrow = 1 # Number of rows
delr0 = 0.5 # Initial column width ($m$)
delrmax = 100.0 # Maximum column width
delc = 100.6 # Row width ($m$)
top = 0.0 # Top of the model ($ft$)
botm_str = "-12.2, -21.3, -30.5" # Layer bottom elevations ($m$)
strt = -10.7 # Starting head ($m$)
icelltype_str = "1, 0, 0" # Cell conversion type
k11_str = "1.8e-5, 3.5e-10, 3.1e-5" # Horizontal hydraulic conductivity ($m/s$)
sy_str = "0.1, 0.05, 0.25" # Specific yield (unitless)
sgm = 1.7 # Specific gravity of moist soils (unitless)
sgs = 2.0 # Specific gravity of saturated soils (unitless)
cg_ske_str = "3.3e-5, 6.6e-4, 4.5e-7" # Coarse grained elastic storativity (1/$m$)
cg_theta_str = "0.25, 0.50, 0.30" # Coarse-grained porosity (unitless)
# Create delr from delr0 and delrmac
delr = np.ones(ncol, dtype=float) * 0.5
xmax = delr[0]
for idx in range(1, ncol):
dx = min(delr[idx - 1] * 1.2, 100.0)
xmax += dx
delr[idx] = dx
# Location of the observation well
locw201 = 11
# Load the aquifer load time series
fname = "train_load_193704231304.csv"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:32dc8e7b7e39876374af43605e264725",
)
csv_load = np.genfromtxt(fpath, names=True, delimiter=",")
# Reformat csv data into format for MODFLOW 6 timeseries file
csub_ts = []
for idx in range(csv_load.shape[0]):
csub_ts.append((csv_load["sim_time"][idx], csv_load["load"][idx]))
# Static temporal data used by TDIS file
tdis_ds = (
(0.5, 1, 1.0),
(csv_load["sim_time"][-1] - 0.5, csv_load["sim_time"].shape[0] - 2, 1),
)
# Simulation starting date and time
dstart = datetime.datetime(1937, 4, 23, 13, 5, 55)
# Create a datetime list
date_list = [dstart + datetime.timedelta(seconds=x) for x in csv_load["sim_time"]]
# parse parameter strings into tuples
botm = [float(value) for value in botm_str.split(",")]
k11 = [float(value) for value in k11_str.split(",")]
icelltype = [int(value) for value in icelltype_str.split(",")]
sy = [float(value) for value in sy_str.split(",")]
cg_ske = [float(value) for value in cg_ske_str.split(",")]
cg_theta = [float(value) for value in cg_theta_str.split(",")]
# Solver parameters
nouter = 500
ninner = 300
hclose = 1e-9
rclose = 1e-6
linaccel = "bicgstab"
relax = 1.0
Model setup
Define functions to build models, write input files, and run the simulation.
[3]:
def build_models():
sim_ws = os.path.join(workspace, sim_name)
sim = flopy.mf6.MFSimulation(sim_name=sim_name, sim_ws=sim_ws, exe_name="mf6")
flopy.mf6.ModflowTdis(sim, nper=nper, perioddata=tdis_ds, time_units=time_units)
flopy.mf6.ModflowIms(
sim,
outer_maximum=nouter,
outer_dvclose=hclose,
linear_acceleration=linaccel,
inner_maximum=ninner,
inner_dvclose=hclose,
relaxation_factor=relax,
rcloserecord=f"{rclose} strict",
)
gwf = flopy.mf6.ModflowGwf(
sim, modelname=sim_name, save_flows=True, newtonoptions="newton"
)
flopy.mf6.ModflowGwfdis(
gwf,
length_units=length_units,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
)
obs_recarray = {"gwf_calib_obs.csv": [("w3_1_1", "HEAD", (2, 0, locw201))]}
flopy.mf6.ModflowUtlobs(gwf, digits=10, print_input=True, continuous=obs_recarray)
flopy.mf6.ModflowGwfic(gwf, strt=strt)
flopy.mf6.ModflowGwfnpf(
gwf,
icelltype=icelltype,
k=k11,
save_specific_discharge=True,
)
flopy.mf6.ModflowGwfsto(
gwf,
iconvert=icelltype,
ss=0.0,
sy=sy,
steady_state={0: True},
transient={1: True},
)
csub = flopy.mf6.ModflowGwfcsub(
gwf,
print_input=True,
update_material_properties=True,
save_flows=True,
ninterbeds=0,
maxsig0=1,
compression_indices=None,
sgm=sgm,
sgs=sgs,
cg_theta=cg_theta,
cg_ske_cr=cg_ske,
beta=4.65120000e-10,
packagedata=None,
stress_period_data={0: [[(0, 0, 0), "LOAD"]]},
)
# initialize time series
csubnam = f"{sim_name}.load.ts"
csub.ts.initialize(
filename=csubnam,
timeseries=csub_ts,
time_series_namerecord=["LOAD"],
interpolation_methodrecord=["linear"],
sfacrecord=["1.05"],
)
flopy.mf6.ModflowGwfoc(
gwf,
printrecord=[("BUDGET", "ALL")],
)
return sim
def write_models(sim, silent=True):
sim.write_simulation(silent=silent)
@timed
def run_models(sim, silent=True):
success, buff = sim.run_simulation(silent=silent, report=True)
assert success, buff
Plotting results
Define functions to plot model results.
[4]:
# Figure properties
figure_size = (6.8, 4.5)

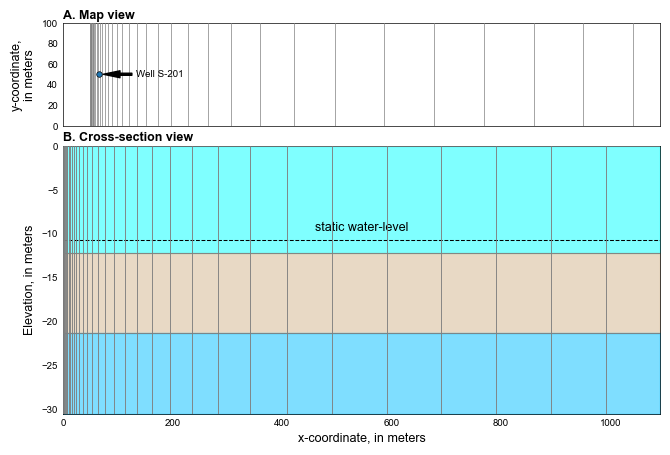

def plot_results(sim, silent=True):
with styles.USGSMap():
gwf = sim.get_model(sim_name)
# plot the grid
fig = plt.figure(figsize=figure_size)
gs = mpl.gridspec.GridSpec(10, 1, figure=fig)
idx = 0
ax = fig.add_subplot(gs[0:3])
extent = (0, xmax, 0, 100)
ax.set_ylim(0, 100)
mm = flopy.plot.PlotMapView(model=gwf, ax=ax, extent=extent)
mm.plot_grid(color="0.5", lw=0.5, zorder=100)
ax.set_ylabel("y-coordinate,\nin meters")
x, y = (
gwf.modelgrid.xcellcenters[0, locw201],
gwf.modelgrid.ycellcenters[0, 0],
)
ax.plot(x, y, marker="o", ms=4, zorder=100, mew=0.5, mec="black")
ax.annotate(
"Well S-201",
xy=(x + 5, y),
xytext=(x + 75, y),
ha="left",
va="center",
zorder=100,
arrowprops=dict(facecolor="black", shrink=0.05, headwidth=5, width=1.5),
)
styles.heading(ax, letter="A", heading="Map view")
styles.remove_edge_ticks(ax)
ax.axes.get_xaxis().set_ticks([])
idx += 1
ax = fig.add_subplot(gs[3:])
extent = (0, xmax, botm[-1], 0)
mc = flopy.plot.PlotCrossSection(
model=gwf, line={"Row": 0}, ax=ax, extent=extent
)
ax.fill_between([0, delr.sum()], y1=top, y2=botm[0], color="cyan", alpha=0.5)
ax.fill_between(
[0, delr.sum()], y1=botm[0], y2=botm[1], color="#D2B48C", alpha=0.5
)
ax.fill_between(
[0, delr.sum()], y1=botm[1], y2=botm[2], color="#00BFFF", alpha=0.5
)
mc.plot_grid(color="0.5", lw=0.5, zorder=100)
ax.plot(
[0, delr.sum()],
[-35 / 3.28081, -35 / 3.28081],
lw=0.75,
color="black",
ls="dashed",
)
ax.text(
delr.sum() / 2,
-10,
"static water-level",
va="bottom",
ha="center",
size=9,
)
ax.set_ylabel("Elevation, in meters")
ax.set_xlabel("x-coordinate, in meters")
styles.heading(ax, letter="B", heading="Cross-section view")
styles.remove_edge_ticks(ax)
fig.align_ylabels()
plt.tight_layout(pad=1, h_pad=0.001, rect=(0.005, -0.02, 0.99, 0.99))
if plot_show:
plt.show()
if plot_save:
fpth = figs_path / f"{sim_name}-grid.png"
fig.savefig(fpth)
# get the simulated heads
sim_obs = gwf.obs.output.obs().data
h0 = sim_obs["W3_1_1"][0]
sim_obs["W3_1_1"] -= h0
sim_date = [dstart + datetime.timedelta(seconds=x) for x in sim_obs["totim"]]
# get the observed head
fname = "s201_gw_2sec.csv"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:1098bcd3f4fc1bd3b38d3d55152a8fbb",
)
dtype = [("date", object), ("dz_m", float)]
obs_head = np.genfromtxt(fpath, names=True, delimiter=",", dtype=dtype)
obs_date = []
for s in obs_head["date"]:
obs_date.append(
datetime.datetime.strptime(s.decode("utf-8"), "%m-%d-%Y %H:%M:%S.%f")
)
t0, t1 = obs_date[0], obs_date[-1]
# plot the results
with styles.USGSPlot() as fs:
fig = plt.figure(figsize=(6.8, 4.0))
gs = mpl.gridspec.GridSpec(2, 1, figure=fig)
axe = fig.add_subplot(gs[-1])
idx = 0
ax = fig.add_subplot(gs[idx], sharex=axe)
ax.set_ylim(0, 3.25)
ax.set_yticks(np.arange(0, 3.5, 0.5))
ax.fill_between(
date_list, csv_load["load"], y2=0, color="cyan", lw=0.5, alpha=0.5
)
ax.set_ylabel("Load, in meters\nof water")
plt.setp(ax.get_xticklabels(), visible=False)
styles.heading(ax, letter="A")
styles.remove_edge_ticks(ax)
ax = axe
ax.plot(
sim_date,
sim_obs["W3_1_1"],
color="black",
lw=0.75,
label="Simulated",
)
ax.plot(
obs_date,
obs_head["dz_m"],
color="red",
lw=0,
ms=4,
marker=".",
label="Offset S-201",
)
ax.axhline(0, lw=0.5, color="0.5")
ax.set_ylabel("Water level fluctuation,\nin meters")
styles.heading(ax, letter="B")
leg = styles.graph_legend(ax, loc="upper right", ncol=1)
ax.set_xlabel("Time")
ax.set_ylim(-0.004, 0.008)
axe.set_xlim(t0, t1)
styles.remove_edge_ticks(ax)
fig.align_ylabels()
plt.tight_layout(pad=1, h_pad=0.001, rect=(0.005, -0.02, 0.99, 0.99))
if plot_show:
plt.show()
if plot_save:
fpth = figs_path / f"{sim_name}-01.png"
fig.savefig(fpth)
Running the example
Define and invoke a function to run the example scenario, then plot results.
[5]:
def scenario(silent=True):
sim = build_models()
if write:
write_models(sim, silent=silent)
if run:
run_models(sim, silent=silent)
if plot:
plot_results(sim, silent=silent)
scenario(silent=False)
<flopy.mf6.data.mfstructure.MFDataItemStructure object at 0x7f401fc30d90>
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ims_-1...
writing model ex-gwf-csub-p01...
writing model name file...
writing package dis...
writing package obs_0...
writing package ic...
writing package npf...
writing package sto...
writing package csub...
writing package ts_0...
writing package oc...
FloPy is using the following executable to run the model: ../../../../../.local/bin/modflow/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.5.0.dev2 (preliminary) 04/23/2024
***DEVELOP MODE***
MODFLOW 6 compiled Apr 23 2024 02:35:18 with Intel(R) Fortran Intel(R) 64
Compiler Classic for applications running on Intel(R) 64, Version 2021.7.0
Build 20220726_000000
This software is preliminary or provisional and is subject to
revision. It is being provided to meet the need for timely best
science. The software has not received final approval by the U.S.
Geological Survey (USGS). No warranty, expressed or implied, is made
by the USGS or the U.S. Government as to the functionality of the
software and related material nor shall the fact of release
constitute any such warranty. The software is provided on the
condition that neither the USGS nor the U.S. Government shall be held
liable for any damages resulting from the authorized or unauthorized
use of the software.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2024/04/24 13:43:57
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
Solving: Stress period: 2 Time step: 1
Solving: Stress period: 2 Time step: 2
Solving: Stress period: 2 Time step: 3
Solving: Stress period: 2 Time step: 4
Solving: Stress period: 2 Time step: 5
Solving: Stress period: 2 Time step: 6
Solving: Stress period: 2 Time step: 7
Solving: Stress period: 2 Time step: 8
Solving: Stress period: 2 Time step: 9
Solving: Stress period: 2 Time step: 10
Solving: Stress period: 2 Time step: 11
Solving: Stress period: 2 Time step: 12
Solving: Stress period: 2 Time step: 13
Solving: Stress period: 2 Time step: 14
Solving: Stress period: 2 Time step: 15
Solving: Stress period: 2 Time step: 16
Solving: Stress period: 2 Time step: 17
Solving: Stress period: 2 Time step: 18
Solving: Stress period: 2 Time step: 19
Solving: Stress period: 2 Time step: 20
Solving: Stress period: 2 Time step: 21
Solving: Stress period: 2 Time step: 22
Solving: Stress period: 2 Time step: 23
Solving: Stress period: 2 Time step: 24
Solving: Stress period: 2 Time step: 25
Solving: Stress period: 2 Time step: 26
Solving: Stress period: 2 Time step: 27
Solving: Stress period: 2 Time step: 28
Solving: Stress period: 2 Time step: 29
Solving: Stress period: 2 Time step: 30
Solving: Stress period: 2 Time step: 31
Solving: Stress period: 2 Time step: 32
Solving: Stress period: 2 Time step: 33
Solving: Stress period: 2 Time step: 34
Solving: Stress period: 2 Time step: 35
Solving: Stress period: 2 Time step: 36
Solving: Stress period: 2 Time step: 37
Solving: Stress period: 2 Time step: 38
Solving: Stress period: 2 Time step: 39
Solving: Stress period: 2 Time step: 40
Solving: Stress period: 2 Time step: 41
Solving: Stress period: 2 Time step: 42
Solving: Stress period: 2 Time step: 43
Solving: Stress period: 2 Time step: 44
Solving: Stress period: 2 Time step: 45
Solving: Stress period: 2 Time step: 46
Solving: Stress period: 2 Time step: 47
Solving: Stress period: 2 Time step: 48
Solving: Stress period: 2 Time step: 49
Solving: Stress period: 2 Time step: 50
Solving: Stress period: 2 Time step: 51
Solving: Stress period: 2 Time step: 52
Solving: Stress period: 2 Time step: 53
Solving: Stress period: 2 Time step: 54
Solving: Stress period: 2 Time step: 55
Solving: Stress period: 2 Time step: 56
Solving: Stress period: 2 Time step: 57
Solving: Stress period: 2 Time step: 58
Solving: Stress period: 2 Time step: 59
Solving: Stress period: 2 Time step: 60
Solving: Stress period: 2 Time step: 61
Solving: Stress period: 2 Time step: 62
Solving: Stress period: 2 Time step: 63
Solving: Stress period: 2 Time step: 64
Solving: Stress period: 2 Time step: 65
Solving: Stress period: 2 Time step: 66
Solving: Stress period: 2 Time step: 67
Solving: Stress period: 2 Time step: 68
Solving: Stress period: 2 Time step: 69
Solving: Stress period: 2 Time step: 70
Solving: Stress period: 2 Time step: 71
Solving: Stress period: 2 Time step: 72
Solving: Stress period: 2 Time step: 73
Solving: Stress period: 2 Time step: 74
Solving: Stress period: 2 Time step: 75
Solving: Stress period: 2 Time step: 76
Solving: Stress period: 2 Time step: 77
Solving: Stress period: 2 Time step: 78
Solving: Stress period: 2 Time step: 79
Solving: Stress period: 2 Time step: 80
Solving: Stress period: 2 Time step: 81
Solving: Stress period: 2 Time step: 82
Solving: Stress period: 2 Time step: 83
Solving: Stress period: 2 Time step: 84
Solving: Stress period: 2 Time step: 85
Solving: Stress period: 2 Time step: 86
Solving: Stress period: 2 Time step: 87
Solving: Stress period: 2 Time step: 88
Solving: Stress period: 2 Time step: 89
Solving: Stress period: 2 Time step: 90
Solving: Stress period: 2 Time step: 91
Solving: Stress period: 2 Time step: 92
Solving: Stress period: 2 Time step: 93
Solving: Stress period: 2 Time step: 94
Solving: Stress period: 2 Time step: 95
Solving: Stress period: 2 Time step: 96
Solving: Stress period: 2 Time step: 97
Solving: Stress period: 2 Time step: 98
Solving: Stress period: 2 Time step: 99
Solving: Stress period: 2 Time step: 100
Solving: Stress period: 2 Time step: 101
Solving: Stress period: 2 Time step: 102
Solving: Stress period: 2 Time step: 103
Solving: Stress period: 2 Time step: 104
Solving: Stress period: 2 Time step: 105
Solving: Stress period: 2 Time step: 106
Solving: Stress period: 2 Time step: 107
Solving: Stress period: 2 Time step: 108
Solving: Stress period: 2 Time step: 109
Solving: Stress period: 2 Time step: 110
Solving: Stress period: 2 Time step: 111
Solving: Stress period: 2 Time step: 112
Solving: Stress period: 2 Time step: 113
Solving: Stress period: 2 Time step: 114
Solving: Stress period: 2 Time step: 115
Solving: Stress period: 2 Time step: 116
Solving: Stress period: 2 Time step: 117
Run end date and time (yyyy/mm/dd hh:mm:ss): 2024/04/24 13:43:57
Elapsed run time: 0.140 Seconds
Normal termination of simulation.
run_models took 150.63 ms
