Advection schemes in MODFLOW 6
This example demonstrates the performance of different numerical advection schemes when solving the groundwater transport equation under pure advection conditions. We solve the pure advection equation:
\[\frac{\partial \left(S_w \theta C\right)}{\partial t} = -\nabla \left(\mathbf{q} \cdot C\right)\]
where C is concentration [g/cm³] and q is the specific discharge field = (qx, qy) = (0.354, 0.354) cm/s at 45°. The problem is configured with no dispersion or diffusion terms, making it a perfect test case for numerical scheme performance since an analytical solution exists.
Problem Setup:

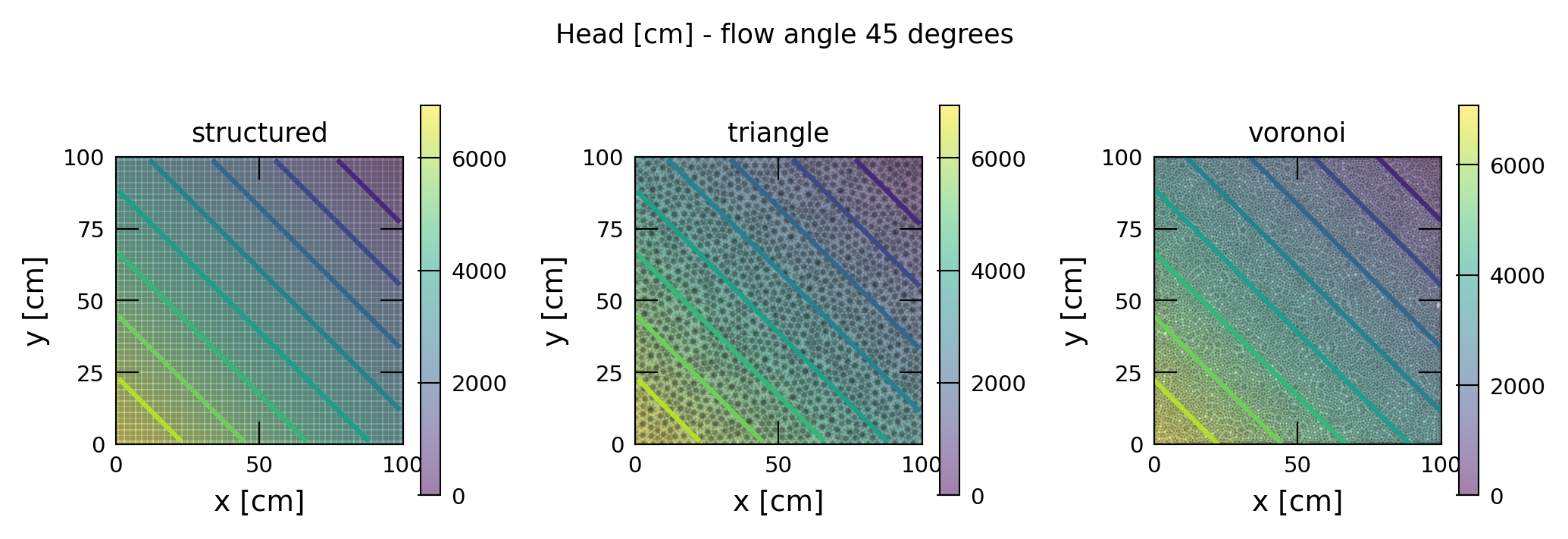

Domain: 100cm x 100cm square with uniform flow at a 45° angle
Boundary conditions: Prescribed concentrations on inflow boundaries
Time: 300 seconds with adaptive time stepping (initial dt = 5s)
Physics: Pure advection without mixing processes (analytical solution available)
Four Advection Schemes Tested:
Upstream: 1st-order accurate, stable but diffusive
Central Difference (CD): 2nd-order accurate but can oscillate on discontinuities
TVD (Total Variation Diminishing): Handles sharp fronts well, works reliably only on structured grids
UTVD (Unstructured TVD): TVD extended with unstructured grid support, maintains TVD-quality performance on all grid types
Three Test Functions (probing different numerical challenges):

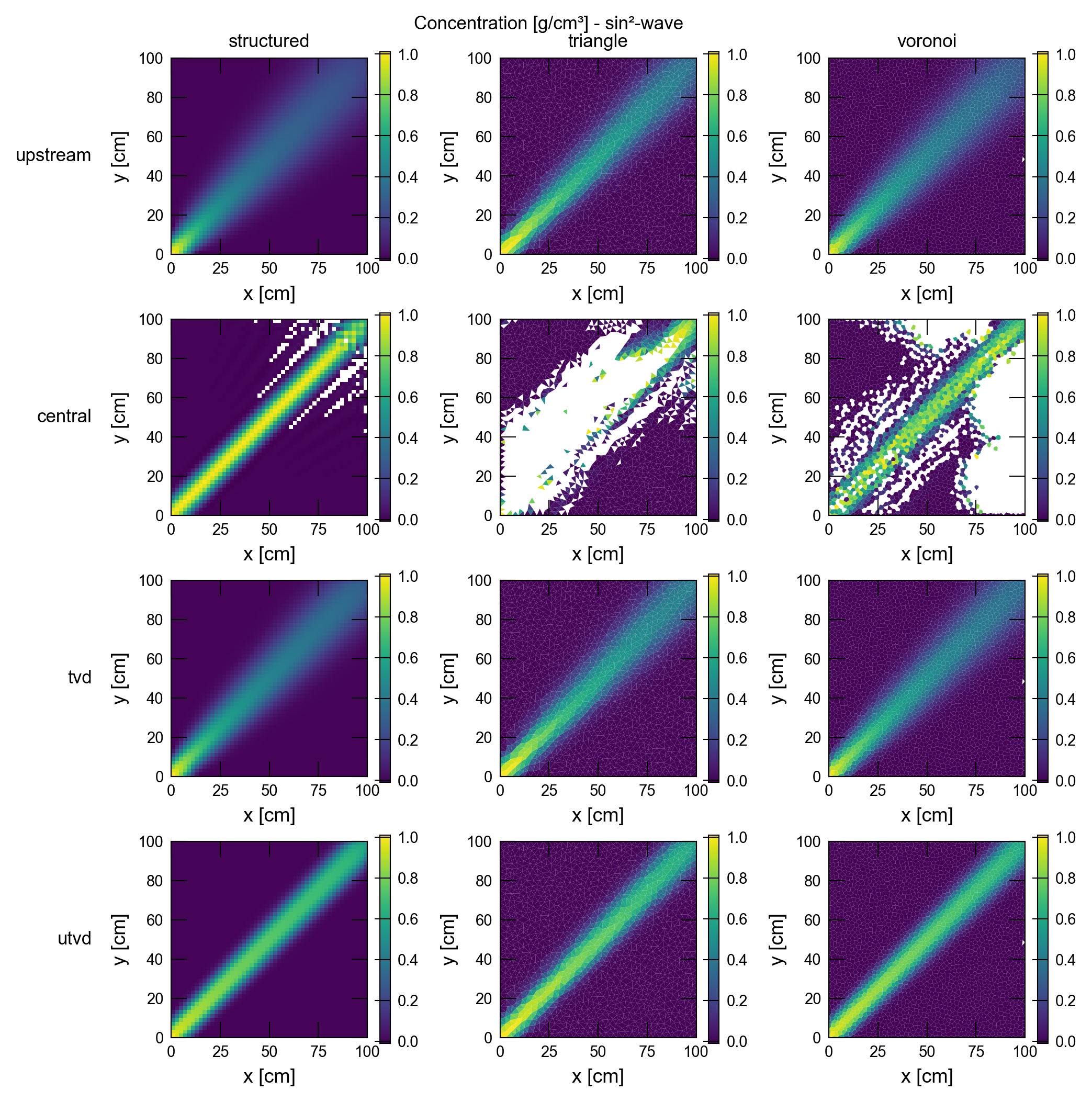

sin² wave: Smooth function testing 2nd-order accuracy

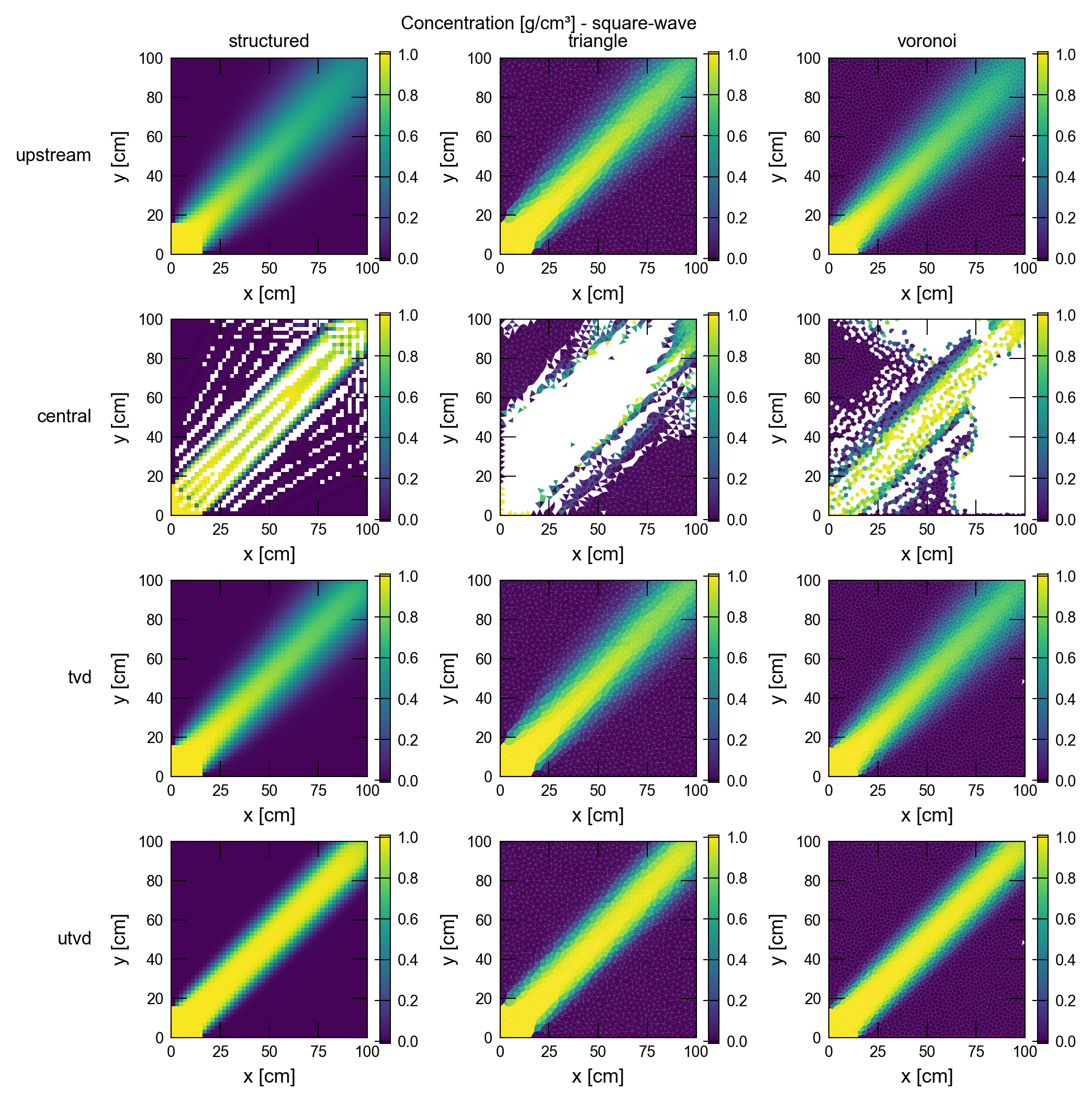

Square wave: Sharp discontinuity testing stability

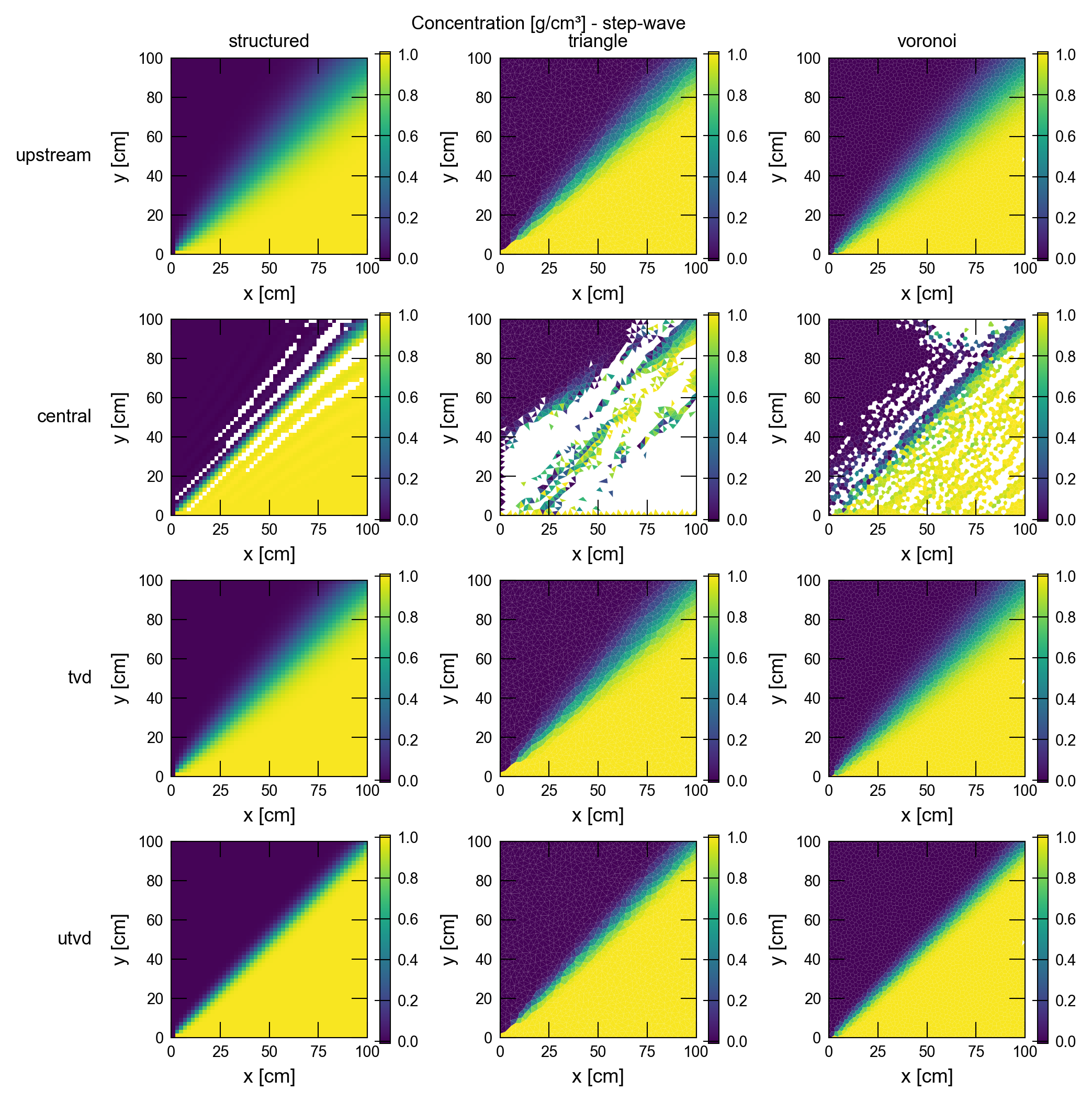

Step wave: Sharp transition testing boundedness
Three Grid Types:
Structured: Regular rectangular cells
Triangle: Triangular mesh elements
Voronoi: Voronoi polygon cells
Expected Results:
CD scheme should oscillate/fail on discontinuous functions
TVD should work well on structured grids but may have issues on unstructured grids
UTVD should handle discontinuities without oscillation across all grid types
Different grid geometries may show different accuracy characteristics for the same numerical scheme
Initial setup
Import dependencies, define the example name and workspace, and read settings from environment variables.
[1]:
import collections.abc
import itertools
import math
from pathlib import Path
import flopy
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from flopy.discretization.vertexgrid import VertexGrid
from flopy.plot.styles import styles
from flopy.utils import GridIntersect
from flopy.utils.triangle import Triangle
from flopy.utils.voronoi import VoronoiGrid
from modflow_devtools.misc import get_env, timed
from scipy.interpolate import LinearNDInterpolator
from shapely.geometry import LineString
try:
import git
except ImportError:
git = None
# Example name and workspace paths. If this example is running
# in the git repository, use the folder structure described in
# the README. Otherwise just use the current working directory.
sim_name = "ex-gwt-adv-schemes"
try:
if git is not None:
root = Path(git.Repo(".", search_parent_directories=True).working_dir)
else:
root = None
except Exception:
root = None
workspace = root / "examples" if root else Path.cwd()
figs_path = root / "figures" if root else Path.cwd()
# Settings from environment variables
write = get_env("WRITE", True)
run = get_env("RUN", True)
plot = get_env("PLOT", True)
plot_show = get_env("PLOT_SHOW", True)
plot_save = get_env("PLOT_SAVE", True)
Define parameters
Define model units, parameters and other settings.
[2]:
# Model units
length_units = "centimeters" # Length units
time_units = "seconds" # Time units
# Model parameters
nper = 1 # Number of periods
nlay = 1 # Number of layers for the structured grid
ncol = 50 # Number of columns for the structured grid
nrow = 50 # Number of rows for the structured grid
Length = 100.0 # Domain length (cm)
Width = 100.0 # Domain width (cm)
delr = 2 # Column width (cm) for the structured grid
delc = 2 # Row width (cm) for the structured grid
top = 1.0 # Top elevation of the model (cm)
botm = 0 # Bottom elevation of the model (cm)
specific_discharge = 0.5 # Specific discharge (cm/s)
hydraulic_conductivity = 0.01 # Hydraulic conductivity (cm/s)
angledeg = 45 # Flow direction (°)
profile_width = 20.0 # Width of the inflow concentration profiles (cm)
total_time = 300.0 # Total simulation time (s)
dt = 5 # Initial time step (s)
percel = 0.7 # Courant number (-)
# Solver parameters
nouter = 100 # Maximum outer iterations
ninner = 300 # Maximum inner iterations
hclose = 1e-6 # Head closure criterion
cclose = 1e-6 # Concentration closure criterion
rclose = 1e-6 # Residual closure criterion
# Grid and scheme definitions
grids = ["structured", "triangle", "voronoi"] # 3 grid types (36 total simulations)
schemes = ["upstream", "central", "tvd", "utvd"] # 4 advection schemes
wave_functions = ["sin²-wave", "step-wave", "square-wave"] # 3 test functions
# Abbreviations for model names (to fit MF6's 16-character limit)
grid_abbrev = {"structured": "s", "triangle": "t", "voronoi": "v"}
wave_abbrev = {"sin2-wave": "sin2", "step-wave": "step", "square-wave": "sqr"}
scheme_abbrev = {"upstream": "up", "central": "cen", "tvd": "tvd", "utvd": "utvd"}
# Compute discharge components
angle = math.radians(angledeg)
qx = specific_discharge * math.cos(angle) # x-component of specific discharge (cm/s)
qy = specific_discharge * math.cos(angle) # y-component of specific discharge (cm/s)
AXES_FRACTION = "axes fraction"
OFFSET_POINTS = "offset points"

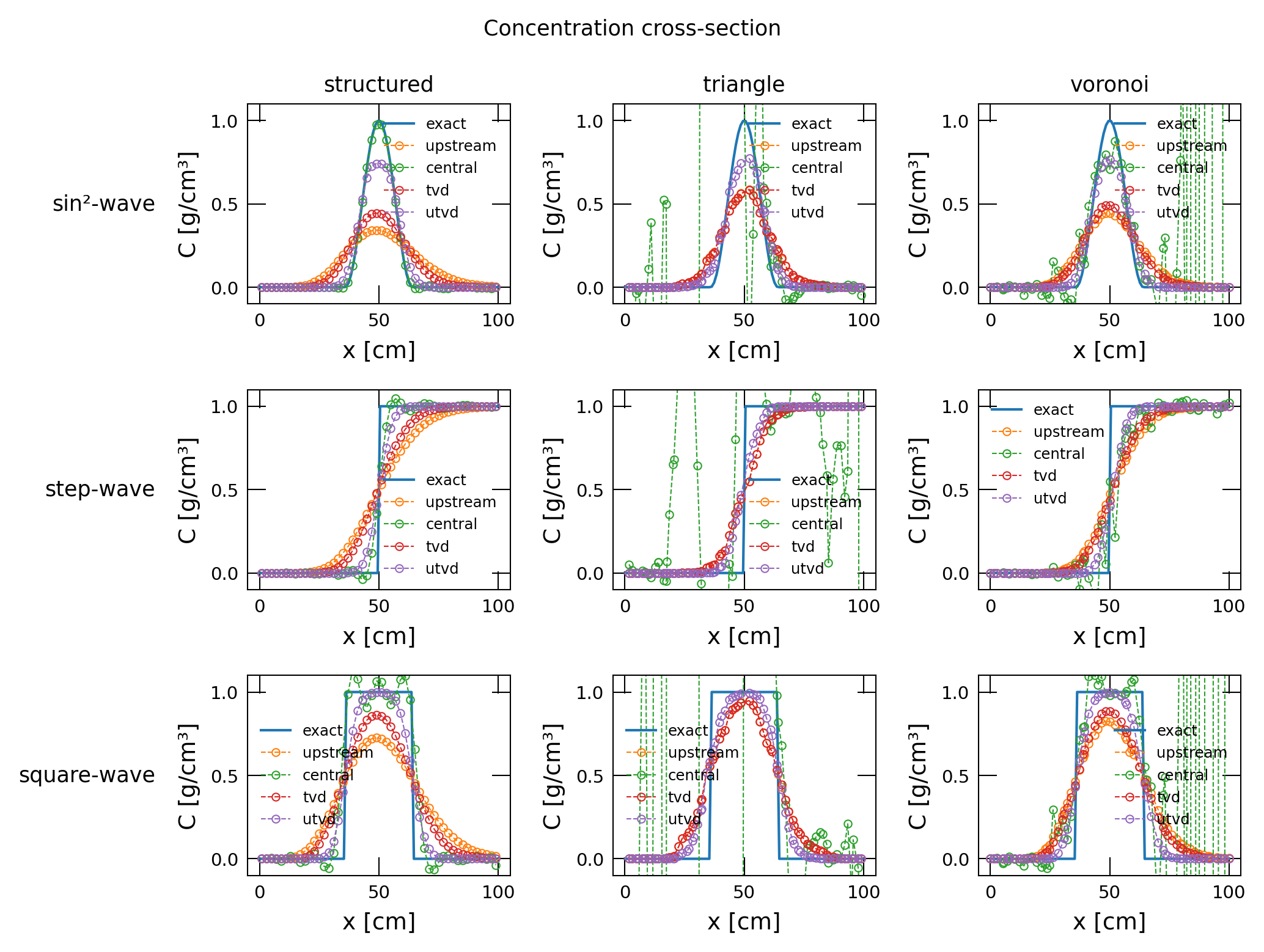

Exact solution of the concentration field for pure advection.
The analytical solution works by:
Rotating coordinates to align with flow direction
Applying the 1D inlet signal in the rotated coordinate system
This works because advection simply translates the inlet pattern
For uniform flow at angle θ, any point (x,y) maps to:
Rotated coordinate: y’ = sin(-θ)·x + cos(-θ)·y
Concentration: C(x,y,t) = inlet_signal(y’ - v·t) Note: At t=300s, the pattern has fully advected through the domain
[3]:
def exact_solution_concentration(x, y, analytical):
"""Calculate exact concentration at any point in the domain.
The analytical solution works by:
1. Rotating coordinates to align with flow direction
2. Applying the 1D inlet signal in the rotated coordinate system
3. This works because advection simply translates the inlet pattern
Args:
x, y: Spatial coordinates (cm)
analytical: Signal type ('sin²-wave', 'step-wave', 'square-wave')
Returns:
Concentration values [dimensionless, 0-1]
"""
# Rotate to 1d solution space
reverse_angle = -angle
rotated_y = math.sin(reverse_angle) * x + math.cos(reverse_angle) * y
# Compute concentration
return inlet_signal(rotated_y, analytical)
def inlet_signal(y, signal_name):
"""Generate inlet signal based on the signal type.
Args:
y: y-coordinate values
signal_name: Type of signal ('step-wave', 'square-wave', 'sin²-wave')
Returns:
Concentration values based on the signal type
"""
clipped_y = np.clip(y, -profile_width / 2, profile_width / 2)
match signal_name:
case "step-wave":
return np.where(y < 0, np.ones(y.shape), np.zeros(y.shape))
case "square-wave":
return np.where(
np.abs(y) < profile_width / 2, np.ones(y.shape), np.zeros(y.shape)
)
case "sin²-wave":
return np.power(np.cos(math.pi * clipped_y / profile_width), 2)
case _:
raise ValueError("Unknown signal name")
[4]:
def grid_triangulator(itri, delr, delc):
nrow, ncol = itri.shape
if np.isscalar(delr):
delr = delr * np.ones(ncol)
if np.isscalar(delc):
delc = delc * np.ones(nrow)
regular_grid = flopy.discretization.StructuredGrid(delc, delr)
vertdict = {}
icell = 0
for i in range(nrow):
for j in range(ncol):
vs = regular_grid.get_cell_vertices(i, j)
if itri[i, j] == 0:
vertdict[icell] = [vs[0], vs[1], vs[2], vs[3], vs[0]]
icell += 1
elif itri[i, j] == 1:
vertdict[icell] = [vs[0], vs[1], vs[3], vs[0]]
icell += 1
vertdict[icell] = [vs[3], vs[1], vs[2], vs[3]]
icell += 1
elif itri[i, j] == 2:
vertdict[icell] = [vs[0], vs[2], vs[3], vs[0]]
icell += 1
vertdict[icell] = [vs[0], vs[1], vs[2], vs[0]]
icell += 1
else:
raise ValueError(f"Unknown itri value: {itri[i, j]}")
verts, iverts = flopy.utils.cvfdutil.to_cvfd(vertdict)
return verts, iverts
def cvfd_to_cell2d(verts, iverts):
vertices = []
for i in range(verts.shape[0]):
x = verts[i, 0]
y = verts[i, 1]
vertices.append([i, x, y])
cell2d = []
for icell2d, vs in enumerate(iverts):
points = [tuple(verts[ip]) for ip in vs]
xc, yc = flopy.utils.cvfdutil.centroid_of_polygon(points)
cell2d.append([icell2d, xc, yc, len(vs), *vs])
return vertices, cell2d
def grid_intersector(vgrid):
"""Create a grid intersector for the given vertex grid."""
return flopy.utils.GridIntersect(vgrid)
def get_boundary(gi, line):
line = LineString(line)
cells = gi.intersect(line)["cellids"]
cells = np.array(list(cells))
return cells
def create_bc(boundary_ids, value, auxvalue=None):
if auxvalue is None:
if isinstance(value, collections.abc.Sequence | np.ndarray):
return [
[(0, cell_id), value[idx]] for idx, cell_id in enumerate(boundary_ids)
]
else:
return [[(0, cell_id), value] for idx, cell_id in enumerate(boundary_ids)]
else:
if isinstance(auxvalue, collections.abc.Sequence | np.ndarray):
return [
[(0, cell_id), value, auxvalue[idx]]
for idx, cell_id in enumerate(boundary_ids)
]
else:
return [
[(0, cell_id), value, auxvalue]
for idx, cell_id in enumerate(boundary_ids)
]
def merge_bc_sum(boundaries):
df = pd.DataFrame(boundaries)
summed = df.groupby([0], as_index=False)[1].sum()
return summed.values.tolist()
def merge_bc_mean(boundaries):
df = pd.DataFrame(boundaries)
mean = df.groupby([0], as_index=False)[1].mean()
return mean.values.tolist()
def create_grid(grid_type, ws=None):
"""Create grid based on the specified type.
Args:
grid_type: Type of grid ('structured', 'triangle', 'voronoi')
Returns:
Tuple of (ncpl, nvert, vertices, cell2d)
"""
if grid_type == "structured":
itri = np.zeros((nrow, ncol), dtype=int)
verts, iverts = grid_triangulator(itri, delr, delc)
vertices, cell2d = cvfd_to_cell2d(verts, iverts)
ncpl = len(cell2d)
nvert = len(verts)
return ncpl, nvert, vertices, cell2d
elif grid_type == "triangle":
active_domain = [(0, 0), (Length, 0), (Length, Width), (0, Width)]
tri = Triangle(
angle=30, maximum_area=delc * delr * 1.5, model_ws=ws or workspace
)
tri.add_polygon(active_domain)
tri.build()
cell2d = tri.get_cell2d()
vertices = tri.get_vertices()
ncpl = tri.ncpl
nvert = tri.nvert
return ncpl, nvert, vertices, cell2d
elif grid_type == "voronoi":
active_domain = [(0, 0), (Length, 0), (Length, Width), (0, Width)]
tri = Triangle(
angle=30, maximum_area=delc * delr / 1.5 * 1.2, model_ws=ws or workspace
)
tri.add_polygon(active_domain)
tri.build()
vor = VoronoiGrid(tri)
disv_gridprops = vor.get_gridprops_vertexgrid()
cell2d = disv_gridprops["cell2d"]
vertices = disv_gridprops["vertices"]
ncpl = disv_gridprops["ncpl"]
nvert = len(vertices)
return ncpl, nvert, vertices, cell2d
else:
raise ValueError(f"grid of type '{grid_type}' is not supported.")
def axis_aligned_segment_length(polygon, axis="y", value=0):
"""Calculate the total length of segments aligned with the specified axis at the given value."""
total_length = 0.0
coords = list(polygon.exterior.coords)
for i in range(len(coords) - 1):
p1, p2 = coords[i], coords[i + 1]
is_aligned = (axis == "y" and p1[1] == value and p2[1] == value) or (
axis == "x" and p1[0] == value and p2[0] == value
)
if is_aligned:
segment = LineString([p1, p2])
total_length += segment.length
return total_length
Define functions to build models, write input files, and run the simulation.
[5]:
def build_mf6gwf(grid_type):
gwfname = f"gwf_{grid_type}"
sim_ws = workspace / sim_name / Path(gwfname)
sim = flopy.mf6.MFSimulation(sim_name=sim_name, sim_ws=sim_ws, exe_name="mf6")
tdis_ds = ((total_time, 1, 1.0),)
flopy.mf6.ModflowTdis(sim, nper=nper, perioddata=tdis_ds, time_units=time_units)
flopy.mf6.ModflowIms(
sim,
print_option="ALL",
linear_acceleration="bicgstab",
outer_maximum=nouter,
outer_dvclose=hclose,
inner_maximum=ninner,
inner_dvclose=hclose,
rcloserecord=rclose,
)
gwf = flopy.mf6.ModflowGwf(sim, modelname=gwfname, save_flows=True)
flopy.mf6.ModflowGwfnpf(
gwf,
save_specific_discharge=True,
save_saturation=True,
export_array_ascii=True,
xt3doptions=True,
icelltype=0,
k=hydraulic_conductivity,
)
flopy.mf6.ModflowGwfic(gwf, strt=0.0, export_array_ascii=True)
ncpl, nvert, vertices, cell2d = create_grid(grid_type, ws=sim_ws)
flopy.mf6.ModflowGwfdisv(
gwf,
nlay=nlay,
ncpl=ncpl,
nvert=nvert,
top=top,
botm=botm,
vertices=vertices,
cell2d=cell2d,
filename=f"{gwfname}.disv",
)
head_filerecord = f"{gwfname}.hds"
budget_filerecord_csv = f"{gwfname}.bud.csv"
budget_filerecord = f"{gwfname}.bud"
flopy.mf6.ModflowGwfoc(
gwf,
head_filerecord=head_filerecord,
budgetcsv_filerecord=budget_filerecord_csv,
budget_filerecord=budget_filerecord,
saverecord=[("HEAD", "ALL"), ("BUDGET", "ALL")],
)
# Boundary lines
bottom_edge = [(0, 0), (Length, 0)]
right_edge = [(Length, 0), (Length, Width)]
top_edge = [(Length, Width), (0, Width)]
left_edge = [(0, Width), (0, 0)]
# Identify boundary ids
vgrid = VertexGrid(vertices=vertices, cell2d=cell2d, ncpl=ncpl, nlay=1)
gi = grid_intersector(vgrid)
bottom_boundary_ids = get_boundary(gi, bottom_edge)
right_boundary_ids = get_boundary(gi, right_edge)
top_boundary_ids = get_boundary(gi, top_edge)
left_boundary_ids = get_boundary(gi, left_edge)
# Set top right element to a chd 0. This makes the solution unique
geometry = vgrid.geo_dataframe.geometry
topright_id, _, _ = np.intersect1d(
right_boundary_ids, top_boundary_ids, return_indices=True
)
if not topright_id.any():
topright_id = [
geometry.loc[top_boundary_ids].get_coordinates()["x"].idxmax().tolist()
]
flopy.mf6.ModflowGwfchd(gwf, stress_period_data=create_bc(topright_id, 0))
# Set boundary conditions
cell_area = geometry.area.values
inflow_area_left = (
geometry.loc[left_boundary_ids]
.apply(lambda poly: axis_aligned_segment_length(poly, axis="x", value=0))
.values
)
inflow_area_bot = (
geometry.loc[bottom_boundary_ids]
.apply(lambda poly: axis_aligned_segment_length(poly, axis="y", value=0))
.values
)
outflow_area_right = (
geometry.loc[right_boundary_ids]
.apply(lambda poly: axis_aligned_segment_length(poly, axis="x", value=Length))
.values
)
outflow_area_top = (
geometry.loc[top_boundary_ids]
.apply(lambda poly: axis_aligned_segment_length(poly, axis="y", value=Width))
.values
)
flopy.mf6.ModflowGwfrch(
gwf,
stress_period_data=merge_bc_sum(
create_bc(
left_boundary_ids, qx * inflow_area_left / cell_area[left_boundary_ids]
)
+ create_bc(
bottom_boundary_ids,
qy * inflow_area_bot / cell_area[bottom_boundary_ids],
)
+ create_bc(
right_boundary_ids,
-qx * outflow_area_right / cell_area[right_boundary_ids],
)
+ create_bc(
top_boundary_ids, -qy * outflow_area_top / cell_area[top_boundary_ids]
)
),
)
return sim
def convert_superscript(text):
map = {
"¹": "1",
"²": "2",
"³": "3",
}
trans_table = str.maketrans(
"".join(map.keys()),
"".join(map.values()),
)
return text.translate(trans_table)
def build_mf6gwt(grid_type, scheme, wave_func):
# Use abbreviated names for model name (16-char MF6 limit)
wave_converted = convert_superscript(wave_func)
gwtname = f"gwt_{grid_abbrev[grid_type]}_{wave_abbrev[wave_converted]}_{scheme_abbrev[scheme]}"
# Use descriptive name for workspace
pathname = f"gwt_{grid_type}_{wave_converted}_{scheme}"
gwfname = f"gwf_{grid_type}"
sim_ws = workspace / sim_name / Path(pathname)
sim = flopy.mf6.MFSimulation(sim_name=sim_name, sim_ws=sim_ws, exe_name="mf6")
nsteps = int(total_time / dt)
tdis_ds = ((total_time, nsteps, 1.0),)
tdis = flopy.mf6.ModflowTdis(
sim, nper=nper, perioddata=tdis_ds, time_units=time_units
)
dtmin = 1e-5
dtmax = 10
dtadj = 2
dtfailadj = dtadj
ats_filerecord = gwtname + ".ats"
atsperiod = [(0, dt, dtmin, dtmax, dtadj, dtfailadj)]
tdis.ats.initialize(
maxats=len(atsperiod),
perioddata=atsperiod,
filename=ats_filerecord,
)
flopy.mf6.ModflowIms(
sim,
linear_acceleration="bicgstab",
print_option="SUMMARY",
outer_maximum=nouter,
outer_dvclose=cclose,
inner_maximum=ninner,
inner_dvclose=cclose,
rcloserecord=rclose,
)
gwt = flopy.mf6.ModflowGwt(sim, modelname=gwtname, save_flows=True)
flopy.mf6.ModflowGwtmst(gwt, porosity=1.0)
flopy.mf6.ModflowGwtssm(gwt)
flopy.mf6.ModflowGwtadv(gwt, scheme=scheme, ats_percel=percel)
packagedata = [
("GWFHEAD", f"../{gwfname}/{gwfname}.hds", None),
("GWFBUDGET", f"../{gwfname}/{gwfname}.bud", None),
]
flopy.mf6.ModflowGwtfmi(gwt, packagedata=packagedata, save_flows=True)
flopy.mf6.ModflowGwtoc(
gwt,
budget_filerecord=f"{gwtname}.cbc",
concentration_filerecord=f"{gwtname}.ucn",
saverecord=[("CONCENTRATION", "LAST"), ("BUDGET", "LAST")],
printrecord=[("CONCENTRATION", "LAST"), ("BUDGET", "LAST")],
)
ncpl, nvert, vertices, cell2d = create_grid(grid_type, ws=sim_ws)
flopy.mf6.ModflowGwtdisv(
gwt,
nlay=nlay,
ncpl=ncpl,
nvert=nvert,
top=top,
botm=botm,
vertices=vertices,
cell2d=cell2d,
filename=f"{gwtname}.disv",
)
# Boundary lines
bottom_edge = [(0, 0), (Length, 0)]
left_edge = [(0, Width), (0, 0)]
# Identify boundary ids
vgrid = VertexGrid(vertices=vertices, cell2d=cell2d, ncpl=ncpl, nlay=1)
gi = grid_intersector(vgrid)
bottom_boundary_ids = get_boundary(gi, bottom_edge)
left_boundary_ids = get_boundary(gi, left_edge)
# Compute exact solution for the inlet boundaries
cell2d_df = pd.DataFrame(cell2d)
xc, yc = cell2d_df.loc[bottom_boundary_ids, 1:2].T.to_numpy()
conc_bottom = exact_solution_concentration(xc, yc, wave_func)
xc, yc = cell2d_df.loc[left_boundary_ids, 1:2].T.to_numpy()
conc_left = exact_solution_concentration(xc, yc, wave_func)
# Set inlet concentrations
flopy.mf6.ModflowGwtcnc(
gwt,
stress_period_data=merge_bc_mean(
create_bc(bottom_boundary_ids, conc_bottom)
+ create_bc(left_boundary_ids, conc_left)
),
)
# Set initial condition equal to zero
flopy.mf6.ModflowGwtic(gwt, strt=0)
return sim
[6]:
def write_models(sim, silent=True):
sim.write_simulation(silent=silent)
@timed
def run_models(sim, silent=True):
success, buff = sim.run_simulation(silent=silent)
assert success, buff
Define functions to plot model results.
[7]:
def plot_results(gwf_sims, gwt_sims):
plot_flows(gwf_sims)
plot_concentrations(gwt_sims)
plot_concentration_cross_sections(gwt_sims)
def plot_flows(gwf_sims):
with styles.USGSPlot():
figure_size = (7, 7 / len(gwf_sims))
fig, axs = plt.subplots(
1, len(gwf_sims), dpi=300, figsize=figure_size, tight_layout=True
)
fig.suptitle("Head [cm] - flow angle 45 degrees")
for idx, (grid, sim) in enumerate(gwf_sims.items()):
plot_flow(sim, axs[idx])
pad = 5 # in points
for ax, col in zip(axs, gwf_sims.keys()):
ax.annotate(
col,
xy=(0.5, 1),
xytext=(0, pad),
xycoords=AXES_FRACTION,
textcoords=OFFSET_POINTS,
size="large",
ha="center",
va="baseline",
)
if plot_show:
plt.show()
if plot_save:
fname = f"{sim_name}-flow.png"
fpth = figs_path / fname
fig.savefig(fpth)
def plot_flow(sim, ax):
gwf = sim.get_model()
head = gwf.output.head().get_data()
bud = gwf.output.budget()
spdis = bud.get_data(text="DATA-SPDIS")[0]
vmin = head.min()
vmax = head.max()
pmv = flopy.plot.PlotMapView(gwf, ax=ax)
pmv.plot_grid(colors="k", alpha=0.1)
pc = pmv.plot_array(head, vmin=vmin, vmax=vmax, alpha=0.5)
pmv.contour_array(head, levels=np.linspace(vmin, vmax, 10))
plt.colorbar(pc)
ax.set_xlabel("x [cm]")
ax.set_ylabel("y [cm]")
ax.set_aspect("equal")
def plot_concentrations(gwt_sims):
for wave_func in wave_functions:
with styles.USGSPlot():
fig, axs = plt.subplots(
nrows=len(schemes),
ncols=len(grids),
dpi=300,
figsize=(7, 7 * len(schemes) / (len(grids) + 1)),
tight_layout=True,
)
fig.suptitle(f"Concentration [g/cm³] - {wave_func}")
for idx_scheme, scheme in enumerate(schemes):
for idx_grid, grid in enumerate(grids):
sim = gwt_sims[(grid, scheme, wave_func)]
plot_concentration(sim, axs[idx_scheme, idx_grid])
pad = 5 # in points
for ax, col in zip(axs[0], grids):
ax.annotate(
col,
xy=(0.5, 1),
xytext=(0, pad),
xycoords=AXES_FRACTION,
textcoords=OFFSET_POINTS,
size="large",
ha="center",
va="baseline",
)
for ax, row in zip(axs[:, 0], schemes):
ax.annotate(
row,
xy=(0, 0.5),
xytext=(-ax.yaxis.labelpad - pad, 0),
xycoords=ax.yaxis.label,
textcoords=OFFSET_POINTS,
size="large",
ha="right",
va="center",
)
fig.subplots_adjust(left=0.25, top=0.95)
if plot_show:
plt.show()
if plot_save:
fname = f"{sim_name}-{convert_superscript(wave_func)}-conc.png"
fpth = figs_path / fname
fig.savefig(fpth)
def plot_concentration(sim, ax):
gwt = sim.get_model()
ucnobj_mf6 = gwt.output.concentration()
conc = ucnobj_mf6.get_data(totim=ucnobj_mf6.get_times()[-1]).flatten()
tol = 1e-2
vmin = -0.0 - tol
vmax = 1.0 + tol
masked_conc = np.ma.masked_outside(conc, vmin, vmax)
pmv = flopy.plot.PlotMapView(gwt, ax=ax)
pc = pmv.plot_array(masked_conc, vmin=vmin, vmax=vmax, alpha=1)
plt.colorbar(pc)
ax.set_xlabel("x [cm]")
ax.set_ylabel("y [cm]")
ax.set_aspect("equal")
def plot_concentration_cross_sections(gwt_sims):
with styles.USGSPlot():
fig, axs = plt.subplots(
nrows=len(wave_functions),
ncols=len(grids),
dpi=300,
figsize=(7, 7 * len(wave_functions) / (len(grids) + 1)),
tight_layout=True,
)
fig.suptitle("Concentration cross-section")
for wave_idx, wave_func in enumerate(wave_functions):
for grid_idx, grid in enumerate(grids):
ax = axs[wave_idx][grid_idx]
plot_concentration_analytical(wave_func, ax)
for scheme in schemes:
sim = gwt_sims[(grid, scheme, wave_func)]
plot_concentration_cross_section(sim, scheme, ax)
ax.legend(fontsize="small")
ax.set_xlabel("x [cm]")
ax.set_ylabel("C [g/cm³]")
ax.set_ylim(-0.1, 1.1)
pad = 5 # in points
for ax, col in zip(axs[0], grids):
ax.annotate(
col,
xy=(0.5, 1),
xytext=(0, pad),
xycoords=AXES_FRACTION,
textcoords=OFFSET_POINTS,
size="large",
ha="center",
va="baseline",
)
for ax, row in zip(axs[:, 0], wave_functions):
ax.annotate(
row,
xy=(0, 0.5),
xytext=(-ax.yaxis.labelpad - pad, 0),
xycoords=ax.yaxis.label,
textcoords=OFFSET_POINTS,
size="large",
ha="right",
va="center",
)
fig.subplots_adjust(left=0.25, top=0.95)
if plot_show:
plt.show()
if plot_save:
fname = f"{sim_name}-conc-cross-section.png"
fpth = figs_path / fname
fig.savefig(fpth)
def plot_concentration_analytical(analytical_func, ax):
x = np.linspace(0, Length, 100)
y = Width / 2
conc = exact_solution_concentration(x, y, analytical_func)
ax.plot(
x, conc, linestyle="-", mfc="none", markersize="3", linewidth=1, label="exact"
)
def plot_concentration_cross_section(sim, scheme, ax):
gwt = sim.get_model()
ucnobj_mf6 = gwt.output.concentration()
conc = ucnobj_mf6.get_data(totim=ucnobj_mf6.get_times()[-1]).flatten()
grid = gwt.modelgrid
xc = grid.xcellcenters
yc = grid.ycellcenters
ix = GridIntersect(grid)
x_line = LineString([(0, Width / 2), (Length, Width / 2)])
xi = ix.intersect(x_line)
x_along_line = sorted(xc[xi.cellids.tolist()])
interp = LinearNDInterpolator(list(zip(xc, yc)), conc)
conc_interp = interp([(i, Width / 2) for i in x_along_line])
ax.plot(
x_along_line,
conc_interp,
linestyle="--",
marker="o",
mfc="none",
markersize="3",
linewidth="0.5",
markeredgewidth="0.5",
label=scheme,
)
Define and invoke a function to run the example scenario, then plot results.
[8]:
def scenario(silent=True):
print("=" * 60)
print("MODFLOW 6 Advection Schemes Comparison")
print("=" * 60)
print(
f"Total simulations: {len(grids)} grids x {len(schemes)} schemes x {len(wave_functions)} functions = {len(grids) * len(schemes) * len(wave_functions)} transport models"
)
print(f"Plus {len(grids)} flow models")
print()
gwf_sims = {}
# Build and run the gwt models on different grids
for grid in grids:
gwf_sims[grid] = build_mf6gwf(grid)
# Build the gwt models
gwt_sims = {}
combinations = list(itertools.product(*[grids, schemes, wave_functions]))
for combination in combinations:
gwt_sims[combination] = build_mf6gwt(
combination[0], combination[1], combination[2]
)
if write:
print("\nWriting flow models:")
for grid, sim in gwf_sims.items():
print(f"- {grid} grid")
write_models(sim, silent=silent)
print("\nWriting transport models:")
for key, sim in gwt_sims.items():
grid, scheme, wave = key
print(f"- {grid} grid \t {scheme} scheme \t {wave} function")
write_models(sim, silent=silent)
if run:
print("\nRunning flow models:")
for grid, sim in gwf_sims.items():
print(f"- {grid} grid")
run_models(sim, silent=silent)
print("\nRunning transport models:")
for key, sim in gwt_sims.items():
grid, scheme, wave = key
print(f"- {grid} grid \t {scheme} scheme \t {wave} function")
run_models(sim, silent=silent)
if plot:
print("\n" + "=" * 40)
print("PLOTTING RESULTS")
print("=" * 40)
print("Generating 3 figure sets:")
print("1. Flow fields (3 subplots)")
print(
f"2. Concentration maps ({len(schemes)} rows x {len(grids)} cols per wave func = {len(schemes) * len(grids) * len(wave_functions)} total subplots)"
)
print(
f"3. Cross-section comparisons ({len(wave_functions)} rows x {len(grids)} cols = {len(wave_functions) * len(grids)} subplots)"
)
plot_results(gwf_sims, gwt_sims)
scenario()
============================================================
MODFLOW 6 Advection Schemes Comparison
============================================================
Total simulations: 3 grids x 4 schemes x 3 functions = 36 transport models
Plus 3 flow models
Writing flow models:
- structured grid
- triangle grid
- voronoi grid
Writing transport models:
- structured grid upstream scheme sin²-wave function
- structured grid upstream scheme step-wave function
- structured grid upstream scheme square-wave function
- structured grid central scheme sin²-wave function
- structured grid central scheme step-wave function
- structured grid central scheme square-wave function
- structured grid tvd scheme sin²-wave function
- structured grid tvd scheme step-wave function
- structured grid tvd scheme square-wave function
- structured grid utvd scheme sin²-wave function
- structured grid utvd scheme step-wave function
- structured grid utvd scheme square-wave function
- triangle grid upstream scheme sin²-wave function
- triangle grid upstream scheme step-wave function
- triangle grid upstream scheme square-wave function
- triangle grid central scheme sin²-wave function
- triangle grid central scheme step-wave function
- triangle grid central scheme square-wave function
- triangle grid tvd scheme sin²-wave function
- triangle grid tvd scheme step-wave function
- triangle grid tvd scheme square-wave function
- triangle grid utvd scheme sin²-wave function
- triangle grid utvd scheme step-wave function
- triangle grid utvd scheme square-wave function
- voronoi grid upstream scheme sin²-wave function
- voronoi grid upstream scheme step-wave function
- voronoi grid upstream scheme square-wave function
- voronoi grid central scheme sin²-wave function
- voronoi grid central scheme step-wave function
- voronoi grid central scheme square-wave function
- voronoi grid tvd scheme sin²-wave function
- voronoi grid tvd scheme step-wave function
- voronoi grid tvd scheme square-wave function
- voronoi grid utvd scheme sin²-wave function
- voronoi grid utvd scheme step-wave function
- voronoi grid utvd scheme square-wave function
Running flow models:
- structured grid
run_models took 64.76 ms
- triangle grid
run_models took 60.80 ms
- voronoi grid
run_models took 107.14 ms
Running transport models:
- structured grid upstream scheme sin²-wave function
run_models took 225.54 ms
- structured grid upstream scheme step-wave function
run_models took 222.67 ms
- structured grid upstream scheme square-wave function
run_models took 221.87 ms
- structured grid central scheme sin²-wave function
run_models took 290.72 ms
- structured grid central scheme step-wave function
run_models took 287.46 ms
- structured grid central scheme square-wave function
run_models took 300.17 ms
- structured grid tvd scheme sin²-wave function
run_models took 1190.54 ms
- structured grid tvd scheme step-wave function
run_models took 971.63 ms
- structured grid tvd scheme square-wave function
run_models took 1331.59 ms
- structured grid utvd scheme sin²-wave function
run_models took 1490.04 ms
- structured grid utvd scheme step-wave function
run_models took 1307.08 ms
- structured grid utvd scheme square-wave function
run_models took 2060.58 ms
- triangle grid upstream scheme sin²-wave function
run_models took 529.63 ms
- triangle grid upstream scheme step-wave function
run_models took 497.45 ms
- triangle grid upstream scheme square-wave function
run_models took 480.72 ms
- triangle grid central scheme sin²-wave function
run_models took 511.86 ms
- triangle grid central scheme step-wave function
run_models took 522.72 ms
- triangle grid central scheme square-wave function
run_models took 524.87 ms
- triangle grid tvd scheme sin²-wave function
run_models took 2187.50 ms
- triangle grid tvd scheme step-wave function
run_models took 2240.01 ms
- triangle grid tvd scheme square-wave function
run_models took 2215.71 ms
- triangle grid utvd scheme sin²-wave function
run_models took 2948.54 ms
- triangle grid utvd scheme step-wave function
run_models took 2975.19 ms
- triangle grid utvd scheme square-wave function
run_models took 3103.46 ms
- voronoi grid upstream scheme sin²-wave function
run_models took 790.65 ms
- voronoi grid upstream scheme step-wave function
run_models took 785.17 ms
- voronoi grid upstream scheme square-wave function
run_models took 791.37 ms
- voronoi grid central scheme sin²-wave function
run_models took 867.71 ms
- voronoi grid central scheme step-wave function
run_models took 842.34 ms
- voronoi grid central scheme square-wave function
run_models took 967.58 ms
- voronoi grid tvd scheme sin²-wave function
run_models took 3666.98 ms
- voronoi grid tvd scheme step-wave function
run_models took 3753.48 ms
- voronoi grid tvd scheme square-wave function
run_models took 3887.67 ms
- voronoi grid utvd scheme sin²-wave function
run_models took 3374.52 ms
- voronoi grid utvd scheme step-wave function
run_models took 3578.51 ms
- voronoi grid utvd scheme square-wave function
run_models took 3511.39 ms
========================================
PLOTTING RESULTS
========================================
Generating 3 figure sets:
1. Flow fields (3 subplots)
2. Concentration maps (4 rows x 3 cols per wave func = 36 total subplots)
3. Cross-section comparisons (3 rows x 3 cols = 9 subplots)
