MT3DMS Problem 10, Two Domains
The purpose of this example is to demonstrate the model setup for a coupled GWF-GWT simulation with submodels. It replicates the three-dimensional field case study model from the 1999 MT3DMS report. The results are checked for equivalence with the MODFLOW 6 GWT solutions as produced by the example ‘MT3DMS problem 10’.
Initial setup
Import dependencies, define the example name and workspace, and read settings from environment variables.
[1]:
import os
import pathlib as pl
import flopy
import git
import matplotlib.pyplot as plt
import numpy as np
import pooch
from flopy.plot.styles import styles
from flopy.utils.util_array import read1d
from modflow_devtools.misc import get_env
# Example name and workspace paths. If this example is running
# in the git repository, use the folder structure described in
# the README. Otherwise just use the current working directory.
sim_name = "ex-gwt-gwtgwt-p10"
try:
root = pl.Path(git.Repo(".", search_parent_directories=True).working_dir)
except:
root = None
workspace = root / "examples" if root else pl.Path.cwd()
figs_path = root / "figures" if root else pl.Path.cwd()
data_path = root / "data" / sim_name if root else pl.Path.cwd()
# Settings from environment variables
write = get_env("WRITE", True)
run = get_env("RUN", True)
plot = get_env("PLOT", True)
plot_show = get_env("PLOT_SHOW", True)
plot_save = get_env("PLOT_SAVE", True)
Define parameters
Define model units, parameters and other settings. Note: the (relative) dimensions of the two models are not configurable.
[2]:
# Model units
length_units = "feet"
time_units = "days"
# Model parameters
nlay = 4 # Number of layers
nlay_inn = 4 # Number of layers
nrow = 61 # Number of rows
nrow_inn = 45 # Number of rows inner model
ncol = 40 # Number of columns
ncol_inn = 28 # Number of columns inner model
delr = "varies" # Column width ($ft$)
delr_inn = 50 # Column width inner model ($ft$)
delc = "varies" # Row width ($ft$)
delc_inn = 50 # Row width inner model ($ft$)
xshift = 5100.0 # X offset inner model
yshift = 9100.0 # Y offset inner model
delz = 25.0 # Layer thickness ($ft$)
top = 780.0 # Top of the model ($ft$)
satthk = 100.0 # Saturated thickness ($ft$)
k1 = 60.0 # Horiz. hyd. conductivity of layers 1 and 2 ($ft/day$)
k2 = 520.0 # Horiz. hyd. conductivity of layers 3 and 4 ($ft/day$)
vka = 0.1 # Ratio of vertical to horizontal hydraulic conductivity
rech = 5.0 # Recharge rate ($in/yr$)
crech = 0.0 # Concentration of recharge ($ppm$)
prsity = 0.3 # Porosity
al = 10.0 # Longitudinal dispersivity ($ft$)
trpt = 0.2 # Ratio of horizontal transverse dispersivity to longitudinal dispersivity
trpv = 0.2 # Ratio of vertical transverse dispersivity to longitudinal dispersivity
rhob = 1.7 # Aquifer bulk density ($g/cm^3$)
sp1 = 0.176 # Distribution coefficient ($cm^3/g$)
# Time discretization parameters
perlen = 1000.0 # Simulation time ($days$)
nstp = 500 # Number of time steps
ttsmult = 1.0 # multiplier
# Additional model input
delr = [2000, 1600, 800, 400, 200, 100] + 28 * [50] + [100, 200, 400, 800, 1600, 2000]
delc = (
[2000, 2000, 2000, 1600, 800, 400, 200, 100]
+ 45 * [50]
+ [100, 200, 400, 800, 1600, 2000, 2000, 2000]
)
hk = [k1, k1, k2, k2]
laytyp = icelltype = 0
# Starting heads from file:
gwt_mt3dms_sim_name = "ex-gwt-mt3dms-p10"
gwt_mt3dms_data_path = data_path.parent / gwt_mt3dms_sim_name if root else pl.Path.cwd()
fname = "p10shead.dat"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{gwt_mt3dms_sim_name}/{fname}",
fname=fname,
path=gwt_mt3dms_data_path,
known_hash="md5:c6591c3c3cfd023ab930b7b1121bfccf",
)
with open(fpath) as f:
s0 = np.empty((nrow * ncol), dtype=float)
s0 = read1d(f, s0).reshape((nrow, ncol))
strt = np.zeros((nlay, nrow, ncol), dtype=float)
for k in range(nlay):
strt[k] = s0
strt_inn = strt[:, 8:53, 6:34]
# Active model domain
idomain = np.ones((nlay, nrow, ncol), dtype=int)
idomain[:, 8:53, 6:34] = 0
idomain_inn = 1
icbund = idomain
# Boundary conditions
rech = 12.7 / 365 / 30.48 # cm/yr -> ft/day
crch = 0.0
# MF6 pumping information for inner DIS
welspd_mf6 = []
# [(layer, row, column), flow, conc]
welspd_mf6.append([(3 - 1, 3 - 1, 23 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 11 - 1, 20 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 18 - 1, 17 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 25 - 1, 14 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 32 - 1, 11 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 40 - 1, 8 - 1), -19230.0, 0.00])
welspd_mf6.append([(3 - 1, 40 - 1, 3 - 1), -15384.0, 0.00])
welspd_mf6.append([(3 - 1, 44 - 1, 11 - 1), -17307.0, 0.00])
wel_mf6_spd = {0: welspd_mf6}
# Transport related
# Starting concentrations from file:
fname = "p10cinit.dat"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{gwt_mt3dms_sim_name}/{fname}",
fname=fname,
path=gwt_mt3dms_data_path,
known_hash="md5:8e2d3ba7af1ec65bb07f6039d1dfb2c8",
)
with open(fpath) as f:
c0 = np.empty((nrow * ncol), dtype=float)
c0 = read1d(f, c0).reshape((nrow, ncol))
sconc = np.zeros((nlay, nrow, ncol), dtype=float)
sconc[1] = 0.2 * c0
sconc[2] = c0
# starting concentration for inner model
sconc_inn = sconc[:, 8:53, 6:34]
# Dispersion
ath1 = al * trpt
atv = al * trpv
dmcoef = 0.0 # ft^2/day
c0 = 0.0
botm = [top - delz * k for k in range(1, nlay + 1)]
mixelm = 0
# Reactive transport related terms
isothm = 1 # sorption type; 1=linear isotherm (equilibrium controlled)
sp2 = 0.0 # w/ isothm = 1 this is read but not used
# ***Note: In the original documentation for this problem, the following two
# values are specified in units of g/cm^3 and cm^3/g, respectively.
# All other units in this problem appear to use ft, including the
# grid discretization, aquifer K (ft/day), recharge (ft/yr),
# pumping (ft^3/day), & dispersion (ft). Because this problem
# attempts to recreate the original problem for comparison purposes,
# we are sticking with these values while also acknowledging this
# discrepancy.
rhob = 1.7 # g/cm^3
sp1 = 0.176 # cm^3/g (Kd: "Distribution coefficient")
# Transport observations
# Instantiate the basic transport package for the inner model
obs = [
[3 - 1, 3 - 1, 23 - 1],
[3 - 1, 11 - 1, 20 - 1],
[3 - 1, 18 - 1, 17 - 1],
[3 - 1, 25 - 1, 14 - 1],
[3 - 1, 32 - 1, 11 - 1],
[3 - 1, 40 - 1, 8 - 1],
[3 - 1, 40 - 1, 3 - 1],
[3 - 1, 44 - 1, 11 - 1],
]
# Solver settings
nouter, ninner = 100, 300
hclose, rclose, relax = 1e-6, 1e-6, 1.0
hclose_gwt, rclose_gwt = 1e-6, 1e-6
percel = 1.0 # HMOC parameters
itrack = 2
wd = 0.5
dceps = 1.0e-5
nplane = 0
npl = 0
nph = 16
npmin = 2
npmax = 32
dchmoc = 1.0e-3
nlsink = nplane
npsink = nph
nadvfd = 1
# Model names
gwfname_out = "gwf-outer"
gwfname_inn = "gwf-inner"
gwtname_out = "gwt-outer"
gwtname_inn = "gwt-inner"
# Exchange data for GWF-GWF and GWT-GWT
exgdata = None
# Advection
scheme = "Undefined"
Model setup
Define functions to build models, write input files, and run the simulation.
[3]:
def build_models():
sim_ws = os.path.join(workspace, sim_name)
sim = flopy.mf6.MFSimulation(sim_name=sim_name, sim_ws=sim_ws, exe_name="mf6")
# Instantiating time discretization
tdis_rc = [(perlen, nstp, 1.0)]
flopy.mf6.ModflowTdis(sim, nper=1, perioddata=tdis_rc, time_units=time_units)
# add both solutions to the simulation
add_flow(sim)
add_transport(sim)
# add flow-transport coupling
flopy.mf6.ModflowGwfgwt(
sim,
exgtype="GWF6-GWT6",
exgmnamea=gwfname_out,
exgmnameb=gwtname_out,
filename="{}.gwfgwt".format("outer"),
)
flopy.mf6.ModflowGwfgwt(
sim,
exgtype="GWF6-GWT6",
exgmnamea=gwfname_inn,
exgmnameb=gwtname_inn,
filename="{}.gwfgwt".format("inner"),
)
return sim
def add_flow(sim):
global exgdata
# Instantiating solver for flow model
imsgwf = flopy.mf6.ModflowIms(
sim,
print_option="SUMMARY",
outer_dvclose=hclose,
outer_maximum=nouter,
under_relaxation="NONE",
inner_maximum=ninner,
inner_dvclose=hclose,
rcloserecord=rclose,
linear_acceleration="CG",
scaling_method="NONE",
reordering_method="NONE",
relaxation_factor=relax,
filename="{}.ims".format("gwfsolver"),
)
gwf_outer = add_outer_gwfmodel(sim)
gwf_inner = add_inner_gwfmodel(sim)
sim.register_ims_package(imsgwf, [gwf_outer.name, gwf_inner.name])
# LGR
exgdata = []
# east
for ilay in range(nlay):
for irow in range(nrow_inn):
irow_outer = irow + 8
exgdata.append(
(
(ilay, irow_outer, 5),
(ilay, irow, 0),
1,
50.0,
25.0,
50.0,
0.0,
75.0,
)
)
# west
for ilay in range(nlay):
for irow in range(nrow_inn):
irow_outer = irow + 8
exgdata.append(
(
(ilay, irow_outer, ncol - 6),
(ilay, irow, ncol_inn - 1),
1,
50.0,
25.0,
50.0,
180.0,
75.0,
)
)
# north
for ilay in range(nlay):
for icol in range(ncol_inn):
icol_outer = icol + 6
exgdata.append(
(
(ilay, 7, icol_outer),
(ilay, 0, icol),
1,
50.0,
25.0,
50.0,
270.0,
75.0,
)
)
# south
for ilay in range(nlay):
for icol in range(ncol_inn):
icol_outer = icol + 6
exgdata.append(
(
(ilay, nrow - 8, icol_outer),
(ilay, nrow_inn - 1, icol),
1,
50.0,
25.0,
50.0,
90.0,
75.0,
)
)
gwfgwf = flopy.mf6.ModflowGwfgwf(
sim,
exgtype="GWF6-GWF6",
nexg=len(exgdata),
exgmnamea=gwf_outer.name,
exgmnameb=gwf_inner.name,
exchangedata=exgdata,
xt3d=False,
print_flows=True,
auxiliary=["ANGLDEGX", "CDIST"],
# dev_interfacemodel_on=True,
)
# Observe flow for exchange 439
gwfgwfobs = {}
gwfgwfobs["gwfgwf.output.obs.csv"] = [
["exchange439", "FLOW-JA-FACE", (439 - 1,)],
]
fname = "gwfgwf.input.obs"
# cdl -- turn off for now as it causes a flopy load fail
# gwfgwf.obs.initialize(
# filename=fname, digits=25, print_input=True, continuous=gwfgwfobs
# )
def add_outer_gwfmodel(sim):
"""Create the outer GWF model"""
mname = gwfname_out
# Instantiating groundwater flow model
gwf = flopy.mf6.ModflowGwf(
sim,
modelname=mname,
save_flows=True,
model_nam_file=f"{mname}.nam",
)
# Instantiating discretization package
flopy.mf6.ModflowGwfdis(
gwf,
length_units=length_units,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
idomain=idomain,
filename=f"{mname}.dis",
)
# Instantiating initial conditions package for flow model
flopy.mf6.ModflowGwfic(gwf, strt=strt, filename=f"{mname}.ic")
# Instantiating node-property flow package
flopy.mf6.ModflowGwfnpf(
gwf,
save_flows=False,
k33overk=True,
icelltype=laytyp,
k=hk,
k33=vka,
save_specific_discharge=True,
filename=f"{mname}.npf",
)
# Instantiate storage package
flopy.mf6.ModflowGwfsto(gwf, ss=0, sy=0, filename=f"{mname}.sto")
# Instantiating constant head package
# MF6 constant head boundaries:
chdspd = []
# Loop through the left & right sides for all layers.
# These boundaries are imposed on the outer model.
for k in np.arange(nlay):
for i in np.arange(nrow):
# (l, r, c), head, conc
chdspd.append([(k, i, 0), strt[k, i, 0], 0.0]) # left
chdspd.append([(k, i, ncol - 1), strt[k, i, ncol - 1], 0.0]) # right
for j in np.arange(1, ncol - 1): # skip corners, already added above
# (l, r, c), head, conc
chdspd.append([(k, 0, j), strt[k, 0, j], 0.0]) # top
chdspd.append([(k, nrow - 1, j), strt[k, nrow - 1, j], 0.0]) # bottom
chdspd = {0: chdspd}
flopy.mf6.ModflowGwfchd(
gwf,
maxbound=len(chdspd),
stress_period_data=chdspd,
save_flows=False,
auxiliary="CONCENTRATION",
pname="CHD-1",
filename=f"{mname}.chd",
)
# Instantiate recharge package
flopy.mf6.ModflowGwfrcha(
gwf,
print_flows=True,
recharge=rech,
pname="RCH-1",
filename=f"{mname}.rch",
)
# Instantiating output control package for flow model
flopy.mf6.ModflowGwfoc(
gwf,
head_filerecord=f"{mname}.hds",
budget_filerecord=f"{mname}.bud",
headprintrecord=[("COLUMNS", 10, "WIDTH", 15, "DIGITS", 6, "GENERAL")],
saverecord=[
("HEAD", "LAST"),
("HEAD", "STEPS", "1", "250", "375", "500"),
("BUDGET", "LAST"),
],
printrecord=[
("HEAD", "LAST"),
("BUDGET", "FIRST"),
("BUDGET", "LAST"),
],
)
return gwf
def add_inner_gwfmodel(sim):
"""Create the inner GWF model"""
mname = gwfname_inn
# Instantiating groundwater flow submodel
gwf = flopy.mf6.ModflowGwf(
sim,
modelname=mname,
save_flows=True,
model_nam_file=f"{mname}.nam",
)
# Instantiating discretization package
flopy.mf6.ModflowGwfdis(
gwf,
length_units=length_units,
nlay=nlay_inn,
nrow=nrow_inn,
ncol=ncol_inn,
delr=delr_inn,
delc=delc_inn,
top=top,
botm=botm,
idomain=idomain_inn,
xorigin=xshift,
yorigin=yshift,
filename=f"{mname}.dis",
)
# Instantiating initial conditions package for flow model
flopy.mf6.ModflowGwfic(gwf, strt=strt_inn, filename=f"{mname}.ic")
# Instantiating node-property flow package
flopy.mf6.ModflowGwfnpf(
gwf,
save_flows=False,
k33overk=True,
icelltype=laytyp,
k=hk,
k33=vka,
save_specific_discharge=True,
filename=f"{mname}.npf",
)
# Instantiate storage package
flopy.mf6.ModflowGwfsto(gwf, ss=0, sy=0, filename=f"{mname}.sto")
# Instantiate recharge package
flopy.mf6.ModflowGwfrcha(
gwf,
print_flows=True,
recharge=rech,
pname="RCH-1",
filename=f"{mname}.rch",
)
# Instantiate the wel package
flopy.mf6.ModflowGwfwel(
gwf,
print_input=True,
print_flows=True,
stress_period_data=wel_mf6_spd,
save_flows=False,
auxiliary="CONCENTRATION",
pname="WEL-1",
filename=f"{mname}.wel",
)
# Instantiating output control package for flow model
flopy.mf6.ModflowGwfoc(
gwf,
head_filerecord=f"{mname}.hds",
budget_filerecord=f"{mname}.bud",
headprintrecord=[("COLUMNS", 10, "WIDTH", 15, "DIGITS", 6, "GENERAL")],
saverecord=[
("HEAD", "LAST"),
("HEAD", "STEPS", "1", "250", "375", "500"),
("BUDGET", "LAST"),
],
printrecord=[
("HEAD", "LAST"),
("BUDGET", "FIRST"),
("BUDGET", "LAST"),
],
)
return gwf
def add_transport(sim):
"""Add the transport models and exchange to the simulation"""
# Create iterative model solution
imsgwt = flopy.mf6.ModflowIms(
sim,
print_option="SUMMARY",
outer_dvclose=hclose_gwt,
outer_maximum=nouter,
under_relaxation="NONE",
inner_maximum=ninner,
inner_dvclose=hclose_gwt,
rcloserecord=rclose_gwt,
linear_acceleration="BICGSTAB",
scaling_method="NONE",
reordering_method="NONE",
relaxation_factor=relax,
filename="{}.ims".format("gwtsolver"),
)
# Instantiating transport advection package
global scheme
if mixelm >= 0:
scheme = "UPSTREAM"
elif mixelm == -1:
scheme = "TVD"
else:
raise Exception()
# Add transport models
gwt_outer = add_outer_gwtmodel(sim)
gwt_inner = add_inner_gwtmodel(sim)
sim.register_ims_package(imsgwt, [gwt_outer.name, gwt_inner.name])
# Create transport-transport coupling
assert exgdata is not None
gwtgwt = flopy.mf6.ModflowGwtgwt(
sim,
exgtype="GWT6-GWT6",
gwfmodelname1=gwfname_out,
gwfmodelname2=gwfname_inn,
adv_scheme=scheme,
nexg=len(exgdata),
exgmnamea=gwt_outer.name,
exgmnameb=gwt_inner.name,
exchangedata=exgdata,
auxiliary=["ANGLDEGX", "CDIST"],
)
# Observe mass flow for exchange 439
gwtgwtobs = {}
gwtgwtobs["gwtgwt.output.obs.csv"] = [
["exchange439", "FLOW-JA-FACE", (439 - 1,)],
]
fname = "gwtgwt.input.obs"
# cdl -- turn off for now as it causes a flopy load fail
# gwtgwt.obs.initialize(
# filename=fname, digits=25, print_input=True, continuous=gwtgwtobs
# )
return sim
def add_outer_gwtmodel(sim):
"""Create the outer GWT model"""
mname = gwtname_out
gwt = flopy.mf6.MFModel(
sim,
model_type="gwt6",
modelname=mname,
model_nam_file=f"{mname}.nam",
)
gwt.name_file.save_flows = True
# Instantiating transport discretization package
flopy.mf6.ModflowGwtdis(
gwt,
nlay=nlay,
nrow=nrow,
ncol=ncol,
delr=delr,
delc=delc,
top=top,
botm=botm,
idomain=idomain,
filename=f"{mname}.dis",
)
# Instantiating transport initial concentrations
flopy.mf6.ModflowGwtic(gwt, strt=sconc, filename=f"{mname}.ic")
flopy.mf6.ModflowGwtadv(gwt, scheme=scheme, filename=f"{mname}.adv")
# Instantiating transport dispersion package
if al != 0:
flopy.mf6.ModflowGwtdsp(
gwt,
alh=al,
ath1=ath1,
atv=atv,
pname="DSP-1",
filename=f"{mname}.dsp",
)
# Instantiating transport mass storage package
kd = sp1
flopy.mf6.ModflowGwtmst(
gwt,
porosity=prsity,
first_order_decay=False,
decay=None,
decay_sorbed=None,
sorption="linear",
bulk_density=rhob,
distcoef=kd,
pname="MST-1",
filename=f"{mname}.mst",
)
# Instantiating transport source-sink mixing package
sourcerecarray = [("CHD-1", "AUX", "CONCENTRATION")]
flopy.mf6.ModflowGwtssm(
gwt,
sources=sourcerecarray,
print_flows=True,
filename=f"{mname}.ssm",
)
# Instantiating transport output control package
flopy.mf6.ModflowGwtoc(
gwt,
budget_filerecord=f"{mname}.cbc",
concentration_filerecord=f"{mname}.ucn",
concentrationprintrecord=[("COLUMNS", 10, "WIDTH", 15, "DIGITS", 6, "GENERAL")],
saverecord=[
("CONCENTRATION", "LAST"),
("CONCENTRATION", "STEPS", "1", "250", "375", "500"),
("BUDGET", "LAST"),
],
printrecord=[("CONCENTRATION", "LAST"), ("BUDGET", "LAST")],
filename=f"{mname}.oc",
)
return gwt
def add_inner_gwtmodel(sim):
"""Create the inner GWT model"""
mname = gwtname_inn
gwt = flopy.mf6.MFModel(
sim,
model_type="gwt6",
modelname=mname,
model_nam_file=f"{mname}.nam",
)
gwt.name_file.save_flows = True
# Instantiating transport discretization package
flopy.mf6.ModflowGwtdis(
gwt,
nlay=nlay_inn,
nrow=nrow_inn,
ncol=ncol_inn,
delr=delr_inn,
delc=delc_inn,
top=top,
botm=botm,
idomain=idomain_inn,
xorigin=xshift,
yorigin=yshift,
filename=f"{mname}.dis",
)
# Instantiating transport initial concentrations
flopy.mf6.ModflowGwtic(gwt, strt=sconc_inn, filename=f"{mname}.ic")
flopy.mf6.ModflowGwtadv(gwt, scheme=scheme, filename=f"{mname}.adv")
# Instantiating transport dispersion package
if al != 0:
flopy.mf6.ModflowGwtdsp(
gwt,
alh=al,
ath1=ath1,
atv=atv,
pname="DSP-1",
filename=f"{mname}.dsp",
)
# Instantiating transport mass storage package
kd = sp1
flopy.mf6.ModflowGwtmst(
gwt,
porosity=prsity,
first_order_decay=False,
decay=None,
decay_sorbed=None,
sorption="linear",
bulk_density=rhob,
distcoef=kd,
pname="MST-1",
filename=f"{mname}.mst",
)
# Instantiating transport source-sink mixing package
sourcerecarray = None
flopy.mf6.ModflowGwtssm(
gwt,
sources=sourcerecarray,
print_flows=True,
filename=f"{mname}.ssm",
)
# Instantiating transport output control package
flopy.mf6.ModflowGwtoc(
gwt,
budget_filerecord=f"{mname}.cbc",
concentration_filerecord=f"{mname}.ucn",
concentrationprintrecord=[("COLUMNS", 10, "WIDTH", 15, "DIGITS", 6, "GENERAL")],
saverecord=[
("CONCENTRATION", "LAST"),
("CONCENTRATION", "STEPS", "1", "250", "375", "500"),
("BUDGET", "LAST"),
],
printrecord=[("CONCENTRATION", "LAST"), ("BUDGET", "LAST")],
filename=f"{mname}.oc",
)
return gwt
def run_models(sim):
success = True
if run:
success, buff = sim.run_simulation()
if not success:
print(buff)
return success
Plotting results
Define functions to plot model results.
[4]:
# Figure properties
figure_size = (6, 8)
# Load MODFLOW 6 reference for the concentrations (GWT MT3DMS p10)
def get_reference_data_conc():
fname = "gwt-p10-mf6_conc_lay3_1days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:bbb596110559d00b7f01032998cf35f4",
)
conc1 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_conc_lay3_500days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:3b3b9321ae6c801fec7d3562aa44a009",
)
conc500 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_conc_lay3_750days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:0d1c2e7682a946e11b56f87c28c0ebd7",
)
conc750 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_conc_lay3_1000days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:c5fe612424e5f83fb2ac46cd4fdc8fb6",
)
conc1000 = np.loadtxt(fpath)
return [conc1, conc500, conc750, conc1000]
# Load MODFLOW 6 reference for heads (GWT MT3DMS p10)
def get_reference_data_heads():
fname = "gwt-p10-mf6_head_lay3_1days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:0c5ce894877692b0a018587a2df068d6",
)
head1 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_head_lay3_500days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:b4b56f9ecad0abafc6c62072cc5f15e9",
)
head500 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_head_lay3_750days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:1c35fee2f7764c1c28eb84ed98b1300c",
)
head750 = np.loadtxt(fpath)
fname = "gwt-p10-mf6_head_lay3_1000days.txt"
fpath = pooch.retrieve(
url=f"https://github.com/MODFLOW-USGS/modflow6-examples/raw/master/data/{sim_name}/{fname}",
fname=fname,
path=data_path,
known_hash="md5:b8e67997ca429f6f20e15852fb2fba9f",
)
head1000 = np.loadtxt(fpath)
return [head1, head500, head750, head1000]
# Plot the inner and outer grid

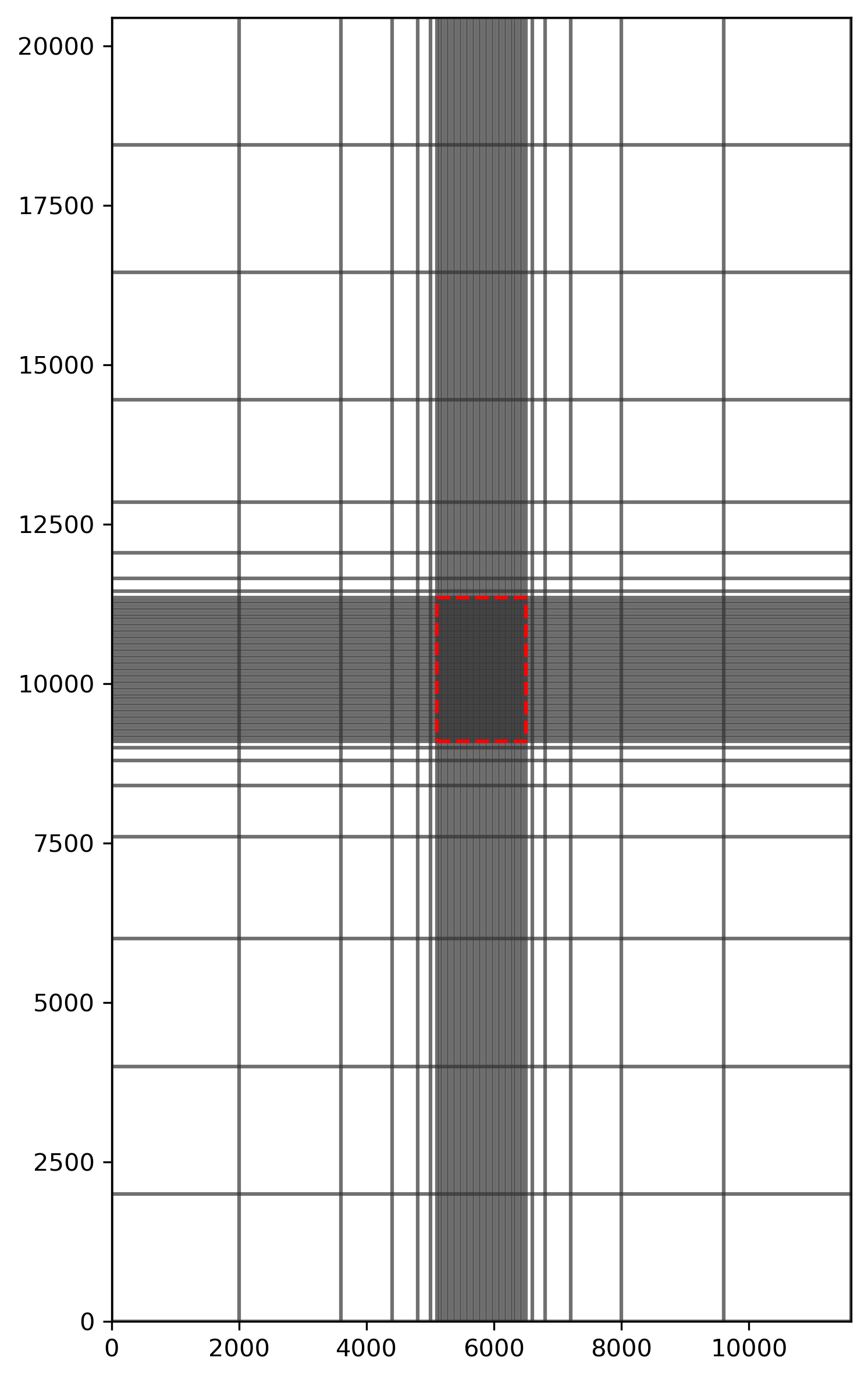

def plot_grids(sim):
xmin = xshift
ymin = yshift
xmax = xshift + 1400
ymax = yshift + 2250
fig = plt.figure(figsize=figure_size, dpi=300, tight_layout=True)
ax = fig.add_subplot(1, 1, 1, aspect="equal")
gwt_outer = sim.get_model(gwtname_out)
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color="0.2", alpha=0.7)
ax.plot(
[xmin, xmax, xmax, xmin, xmin],
[ymin, ymin, ymax, ymax, ymin],
"r--",
)
fpath = figs_path / "ex-gwtgwt-p10-modelgrid.png"
fig.savefig(fpath)
# Plot the difference in concentration after 1,500,750,1000 days
# between this coupled model setup using a GWT-GWT exchange and the
# single model reference
def plot_difference_conc(sim):
conc_singlemodel_lay3 = get_reference_data_conc()
# Get the concentration output
gwt_outer = sim.get_model(gwtname_out)
gwt = sim.get_model(gwtname_inn)
ucnobj_mf6 = gwt.output.concentration()
conc_mf6 = ucnobj_mf6.get_alldata()
ucnobj_mf6_outer = gwt_outer.output.concentration()
conc_mf6_outer = ucnobj_mf6_outer.get_alldata()
# Create figure for scenario
with styles.USGSPlot():
plt.rcParams["lines.dashed_pattern"] = [5.0, 5.0]
fig = plt.figure(figsize=figure_size, dpi=300, tight_layout=True)
# Difference in concentration @ 1 day
ax = fig.add_subplot(2, 2, 1, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 0
ilayer = 2
c_1day = conc_mf6_outer[istep]
c_1day[:, 8:53, 6:34] = conc_mf6[istep]
c_1day_singlemodel_lay3 = conc_singlemodel_lay3[istep]
pa = mm.plot_array(c_1day[ilayer] - c_1day_singlemodel_lay3)
xc, yc = gwt.modelgrid.xycenters
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
# Plot the wells as well
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 1 day"
styles.heading(letter="A", heading=title)
# Difference in concentration @ 500 days
ax = fig.add_subplot(2, 2, 2, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 1
ilayer = 2
c_500days = conc_mf6_outer[istep]
c_500days[:, 8:53, 6:34] = conc_mf6[istep]
c_500days_singlemodel_lay3 = conc_singlemodel_lay3[istep]
pa = mm.plot_array(c_500days[ilayer] - c_500days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 500 days"
styles.heading(letter="B", heading=title)
# Difference in concentration @ 750 days
ax = fig.add_subplot(2, 2, 3, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 2
ilayer = 2
c_750days = conc_mf6_outer[istep]
c_750days[:, 8:53, 6:34] = conc_mf6[istep]
c_750days_singlemodel_lay3 = conc_singlemodel_lay3[istep]
pa = mm.plot_array(c_750days[ilayer] - c_750days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 750 days"
styles.heading(letter="C", heading=title)
# Difference in concentration @ 1000 days
ax = fig.add_subplot(2, 2, 4, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 3
ilayer = 2
c_1000days = conc_mf6_outer[istep]
c_1000days[:, 8:53, 6:34] = conc_mf6[istep]
c_1000days_singlemodel_lay3 = conc_singlemodel_lay3[istep]
pa = mm.plot_array(c_1000days[ilayer] - c_1000days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 1000 days"
styles.heading(letter="D", heading=title)
fpath = figs_path / "ex-gwtgwt-p10-diffconc.png"
fig.savefig(fpath)
# Plot the difference in head after 1,500,750,1000 days
# between this coupled model and the single model reference
def plot_difference_heads(sim):
head_singlemodel_lay3 = get_reference_data_heads()
# Get the concentration output
gwf_outer = sim.get_model(gwfname_out)
gwf = sim.get_model(gwfname_inn)
hobj_mf6 = gwf.output.head()
head_mf6 = hobj_mf6.get_alldata()
hobj_mf6_outer = gwf_outer.output.head()
head_mf6_outer = hobj_mf6_outer.get_alldata()
# Create figure for scenario
with styles.USGSPlot():
plt.rcParams["lines.dashed_pattern"] = [5.0, 5.0]
fig = plt.figure(figsize=figure_size, dpi=300, tight_layout=True)
# Difference in heads @ 1 day
ax = fig.add_subplot(2, 2, 1, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwf_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 0
ilayer = 2
h_1day = head_mf6_outer[istep]
h_1day[:, 8:53, 6:34] = head_mf6[istep]
h_1day_singlemodel_lay3 = head_singlemodel_lay3[istep]
pa = mm.plot_array(h_1day[ilayer] - h_1day_singlemodel_lay3)
xc, yc = gwf.modelgrid.xycenters
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
# Plot the wells as well
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 1 day"
styles.heading(letter="A", heading=title)
# Difference in heads @ 500 days
ax = fig.add_subplot(2, 2, 2, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwf_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 1
ilayer = 2
h_500days = head_mf6_outer[istep]
h_500days[:, 8:53, 6:34] = head_mf6[istep]
h_500days_singlemodel_lay3 = head_singlemodel_lay3[istep]
pa = mm.plot_array(h_500days[ilayer] - h_500days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 500 days"
styles.heading(letter="B", heading=title)
# Difference in heads @ 750 days
ax = fig.add_subplot(2, 2, 3, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwf_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 2
ilayer = 2
h_750days = head_mf6_outer[istep]
h_750days[:, 8:53, 6:34] = head_mf6[istep]
h_750days_singlemodel_lay3 = head_singlemodel_lay3[istep]
pa = mm.plot_array(h_750days[ilayer] - h_750days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 750 days"
styles.heading(letter="C", heading=title)
# Difference in heads @ 1000 days
ax = fig.add_subplot(2, 2, 4, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwf_outer)
mm.plot_grid(color=".5", alpha=0.2)
istep = 3
ilayer = 2
h_1000days = head_mf6_outer[istep]
h_1000days[:, 8:53, 6:34] = head_mf6[istep]
h_1000days_singlemodel_lay3 = head_singlemodel_lay3[istep]
pa = mm.plot_array(h_1000days[ilayer] - h_1000days_singlemodel_lay3)
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.colorbar(pa, shrink=0.5)
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Difference Layer 3 Time = 1000 days"
styles.heading(letter="D", heading=title)
fpath = figs_path / "ex-gwtgwt-p10-diffhead.png"
fig.savefig(fpath)
# Plot the concentration, this figure should be compared to the same figure in MT3DMS problem 10
def plot_concentration(sim):
# Get the concentration output
gwt_outer = sim.get_model(gwtname_out)
gwt = sim.get_model(gwtname_inn)
ucnobj_mf6 = gwt.output.concentration()
conc_mf6 = ucnobj_mf6.get_alldata()
ucnobj_mf6_outer = gwt_outer.output.concentration()
conc_mf6_outer = ucnobj_mf6_outer.get_alldata()
# Create figure for scenario
with styles.USGSPlot():
plt.rcParams["lines.dashed_pattern"] = [5.0, 5.0]
xc, yc = gwt.modelgrid.xycenters
# Plot init. concentration (lay=3)
fig = plt.figure(figsize=figure_size, dpi=300, tight_layout=True)
ax = fig.add_subplot(2, 2, 1, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
cs = mm.contour_array(sconc[2], levels=np.arange(20, 200, 20))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.clabel(cs, fmt=r"%3d")
# Plot the wells as well
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Layer 3 Initial Concentration"
styles.heading(letter="A", heading=title)
ax = fig.add_subplot(2, 2, 2, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
c_500days = conc_mf6_outer[1]
c_500days[:, 8:53, 6:34] = conc_mf6[1] # Concentration @ 500 days
cs = mm.contour_array(c_500days[2], levels=np.arange(10, 200, 10))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.clabel(cs, fmt=r"%3d")
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Layer 3 Time = 500 days"
styles.heading(letter="B", heading=title)
ax = fig.add_subplot(2, 2, 3, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
c_750days = conc_mf6_outer[2]
c_750days[:, 8:53, 6:34] = conc_mf6[2] # Concentration @ 750 days
cs = mm.contour_array(c_750days[2], levels=np.arange(10, 200, 10))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.clabel(cs, fmt=r"%3d")
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Layer 3 Time = 750 days"
styles.heading(letter="C", heading=title)
ax = fig.add_subplot(2, 2, 4, aspect="equal")
mm = flopy.plot.PlotMapView(model=gwt_outer)
mm.plot_grid(color=".5", alpha=0.2)
c_1000days = conc_mf6_outer[3]
c_1000days[:, 8:53, 6:34] = conc_mf6[3] # Concentration @ 1000 days
cs = mm.contour_array(c_1000days[2], levels=np.arange(10, 200, 10))
plt.xlim(5100, 5100 + 28 * 50)
plt.ylim(9100, 9100 + 45 * 50)
plt.xlabel("Distance Along X-Axis, in meters")
plt.ylabel("Distance Along Y-Axis, in meters")
plt.clabel(cs, fmt=r"%3d")
for cid, f, c in welspd_mf6:
plt.plot(xshift + xc[cid[2]], yshift + yc[cid[1]], "ks")
title = "Layer 3 Time = 1000 days"
styles.heading(letter="D", heading=title)
fpath = figs_path / "ex-gwtgwt-p10-concentration.png"
fig.savefig(fpath)
# Generates all plots
def plot_results(sim):
print("Plotting model results...")
plot_grids(sim)
plot_concentration(sim)
plot_difference_conc(sim)
plot_difference_heads(sim)
Running the example
Define and invoke a function to run the example scenario, then plot results.
[5]:
def scenario():
sim = build_models()
if write:
sim.write_simulation()
if run:
run_models(sim)
if plot:
plot_results(sim)
scenario()
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ims_-1...
writing solution package ims_0...
writing package ex-gwt-gwtgwt-p10.gwfgwf...
writing package ex-gwt-gwtgwt-p10.gwtgwt...
writing package outer.gwfgwt...
writing package inner.gwfgwt...
writing model gwf-outer...
writing model name file...
writing package dis...
writing package ic...
writing package npf...
writing package sto...
writing package chd-1...
INFORMATION: maxbound in ('gwf6', 'chd', 'dimensions') changed to 792 based on size of stress_period_data
writing package rch-1...
writing package oc...
writing model gwf-inner...
writing model name file...
writing package dis...
writing package ic...
writing package npf...
writing package sto...
writing package rch-1...
writing package wel-1...
INFORMATION: maxbound in ('gwf6', 'wel', 'dimensions') changed to 8 based on size of stress_period_data
writing package oc...
writing model gwt-outer...
writing model name file...
writing package dis...
writing package ic...
writing package adv...
writing package dsp-1...
writing package mst-1...
writing package ssm...
writing package oc...
writing model gwt-inner...
writing model name file...
writing package dis...
writing package ic...
writing package adv...
writing package dsp-1...
writing package mst-1...
writing package ssm...
writing package oc...
FloPy is using the following executable to run the model: ../../../../../../.local/bin/modflow/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.5.0 05/23/2024
***DEVELOP MODE***
MODFLOW 6 compiled Jul 4 2024 03:21:22 with GCC version 11.4.0
This software has been approved for release by the U.S. Geological
Survey (USGS). Although the software has been subjected to rigorous
review, the USGS reserves the right to update the software as needed
pursuant to further analysis and review. No warranty, expressed or
implied, is made by the USGS or the U.S. Government as to the
functionality of the software and related material nor shall the
fact of release constitute any such warranty. Furthermore, the
software is released on condition that neither the USGS nor the U.S.
Government shall be held liable for any damages resulting from its
authorized or unauthorized use. Also refer to the USGS Water
Resources Software User Rights Notice for complete use, copyright,
and distribution information.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2024/07/04 3:26:29
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
Solving: Stress period: 1 Time step: 2
Solving: Stress period: 1 Time step: 3
Solving: Stress period: 1 Time step: 4
Solving: Stress period: 1 Time step: 5
Solving: Stress period: 1 Time step: 6
Solving: Stress period: 1 Time step: 7
Solving: Stress period: 1 Time step: 8
Solving: Stress period: 1 Time step: 9
Solving: Stress period: 1 Time step: 10
Solving: Stress period: 1 Time step: 11
Solving: Stress period: 1 Time step: 12
Solving: Stress period: 1 Time step: 13
Solving: Stress period: 1 Time step: 14
Solving: Stress period: 1 Time step: 15
Solving: Stress period: 1 Time step: 16
Solving: Stress period: 1 Time step: 17
Solving: Stress period: 1 Time step: 18
Solving: Stress period: 1 Time step: 19
Solving: Stress period: 1 Time step: 20
Solving: Stress period: 1 Time step: 21
Solving: Stress period: 1 Time step: 22
Solving: Stress period: 1 Time step: 23
Solving: Stress period: 1 Time step: 24
Solving: Stress period: 1 Time step: 25
Solving: Stress period: 1 Time step: 26
Solving: Stress period: 1 Time step: 27
Solving: Stress period: 1 Time step: 28
Solving: Stress period: 1 Time step: 29
Solving: Stress period: 1 Time step: 30
Solving: Stress period: 1 Time step: 31
Solving: Stress period: 1 Time step: 32
Solving: Stress period: 1 Time step: 33
Solving: Stress period: 1 Time step: 34
Solving: Stress period: 1 Time step: 35
Solving: Stress period: 1 Time step: 36
Solving: Stress period: 1 Time step: 37
Solving: Stress period: 1 Time step: 38
Solving: Stress period: 1 Time step: 39
Solving: Stress period: 1 Time step: 40
Solving: Stress period: 1 Time step: 41
Solving: Stress period: 1 Time step: 42
Solving: Stress period: 1 Time step: 43
Solving: Stress period: 1 Time step: 44
Solving: Stress period: 1 Time step: 45
Solving: Stress period: 1 Time step: 46
Solving: Stress period: 1 Time step: 47
Solving: Stress period: 1 Time step: 48
Solving: Stress period: 1 Time step: 49
Solving: Stress period: 1 Time step: 50
Solving: Stress period: 1 Time step: 51
Solving: Stress period: 1 Time step: 52
Solving: Stress period: 1 Time step: 53
Solving: Stress period: 1 Time step: 54
Solving: Stress period: 1 Time step: 55
Solving: Stress period: 1 Time step: 56
Solving: Stress period: 1 Time step: 57
Solving: Stress period: 1 Time step: 58
Solving: Stress period: 1 Time step: 59
Solving: Stress period: 1 Time step: 60
Solving: Stress period: 1 Time step: 61
Solving: Stress period: 1 Time step: 62
Solving: Stress period: 1 Time step: 63
Solving: Stress period: 1 Time step: 64
Solving: Stress period: 1 Time step: 65
Solving: Stress period: 1 Time step: 66
Solving: Stress period: 1 Time step: 67
Solving: Stress period: 1 Time step: 68
Solving: Stress period: 1 Time step: 69
Solving: Stress period: 1 Time step: 70
Solving: Stress period: 1 Time step: 71
Solving: Stress period: 1 Time step: 72
Solving: Stress period: 1 Time step: 73
Solving: Stress period: 1 Time step: 74
Solving: Stress period: 1 Time step: 75
Solving: Stress period: 1 Time step: 76
Solving: Stress period: 1 Time step: 77
Solving: Stress period: 1 Time step: 78
Solving: Stress period: 1 Time step: 79
Solving: Stress period: 1 Time step: 80
Solving: Stress period: 1 Time step: 81
Solving: Stress period: 1 Time step: 82
Solving: Stress period: 1 Time step: 83
Solving: Stress period: 1 Time step: 84
Solving: Stress period: 1 Time step: 85
Solving: Stress period: 1 Time step: 86
Solving: Stress period: 1 Time step: 87
Solving: Stress period: 1 Time step: 88
Solving: Stress period: 1 Time step: 89
Solving: Stress period: 1 Time step: 90
Solving: Stress period: 1 Time step: 91
Solving: Stress period: 1 Time step: 92
Solving: Stress period: 1 Time step: 93
Solving: Stress period: 1 Time step: 94
Solving: Stress period: 1 Time step: 95
Solving: Stress period: 1 Time step: 96
Solving: Stress period: 1 Time step: 97
Solving: Stress period: 1 Time step: 98
Solving: Stress period: 1 Time step: 99
Solving: Stress period: 1 Time step: 100
Solving: Stress period: 1 Time step: 101
Solving: Stress period: 1 Time step: 102
Solving: Stress period: 1 Time step: 103
Solving: Stress period: 1 Time step: 104
Solving: Stress period: 1 Time step: 105
Solving: Stress period: 1 Time step: 106
Solving: Stress period: 1 Time step: 107
Solving: Stress period: 1 Time step: 108
Solving: Stress period: 1 Time step: 109
Solving: Stress period: 1 Time step: 110
Solving: Stress period: 1 Time step: 111
Solving: Stress period: 1 Time step: 112
Solving: Stress period: 1 Time step: 113
Solving: Stress period: 1 Time step: 114
Solving: Stress period: 1 Time step: 115
Solving: Stress period: 1 Time step: 116
Solving: Stress period: 1 Time step: 117
Solving: Stress period: 1 Time step: 118
Solving: Stress period: 1 Time step: 119
Solving: Stress period: 1 Time step: 120
Solving: Stress period: 1 Time step: 121
Solving: Stress period: 1 Time step: 122
Solving: Stress period: 1 Time step: 123
Solving: Stress period: 1 Time step: 124
Solving: Stress period: 1 Time step: 125
Solving: Stress period: 1 Time step: 126
Solving: Stress period: 1 Time step: 127
Solving: Stress period: 1 Time step: 128
Solving: Stress period: 1 Time step: 129
Solving: Stress period: 1 Time step: 130
Solving: Stress period: 1 Time step: 131
Solving: Stress period: 1 Time step: 132
Solving: Stress period: 1 Time step: 133
Solving: Stress period: 1 Time step: 134
Solving: Stress period: 1 Time step: 135
Solving: Stress period: 1 Time step: 136
Solving: Stress period: 1 Time step: 137
Solving: Stress period: 1 Time step: 138
Solving: Stress period: 1 Time step: 139
Solving: Stress period: 1 Time step: 140
Solving: Stress period: 1 Time step: 141
Solving: Stress period: 1 Time step: 142
Solving: Stress period: 1 Time step: 143
Solving: Stress period: 1 Time step: 144
Solving: Stress period: 1 Time step: 145
Solving: Stress period: 1 Time step: 146
Solving: Stress period: 1 Time step: 147
Solving: Stress period: 1 Time step: 148
Solving: Stress period: 1 Time step: 149
Solving: Stress period: 1 Time step: 150
Solving: Stress period: 1 Time step: 151
Solving: Stress period: 1 Time step: 152
Solving: Stress period: 1 Time step: 153
Solving: Stress period: 1 Time step: 154
Solving: Stress period: 1 Time step: 155
Solving: Stress period: 1 Time step: 156
Solving: Stress period: 1 Time step: 157
Solving: Stress period: 1 Time step: 158
Solving: Stress period: 1 Time step: 159
Solving: Stress period: 1 Time step: 160
Solving: Stress period: 1 Time step: 161
Solving: Stress period: 1 Time step: 162
Solving: Stress period: 1 Time step: 163
Solving: Stress period: 1 Time step: 164
Solving: Stress period: 1 Time step: 165
Solving: Stress period: 1 Time step: 166
Solving: Stress period: 1 Time step: 167
Solving: Stress period: 1 Time step: 168
Solving: Stress period: 1 Time step: 169
Solving: Stress period: 1 Time step: 170
Solving: Stress period: 1 Time step: 171
Solving: Stress period: 1 Time step: 172
Solving: Stress period: 1 Time step: 173
Solving: Stress period: 1 Time step: 174
Solving: Stress period: 1 Time step: 175
Solving: Stress period: 1 Time step: 176
Solving: Stress period: 1 Time step: 177
Solving: Stress period: 1 Time step: 178
Solving: Stress period: 1 Time step: 179
Solving: Stress period: 1 Time step: 180
Solving: Stress period: 1 Time step: 181
Solving: Stress period: 1 Time step: 182
Solving: Stress period: 1 Time step: 183
Solving: Stress period: 1 Time step: 184
Solving: Stress period: 1 Time step: 185
Solving: Stress period: 1 Time step: 186
Solving: Stress period: 1 Time step: 187
Solving: Stress period: 1 Time step: 188
Solving: Stress period: 1 Time step: 189
Solving: Stress period: 1 Time step: 190
Solving: Stress period: 1 Time step: 191
Solving: Stress period: 1 Time step: 192
Solving: Stress period: 1 Time step: 193
Solving: Stress period: 1 Time step: 194
Solving: Stress period: 1 Time step: 195
Solving: Stress period: 1 Time step: 196
Solving: Stress period: 1 Time step: 197
Solving: Stress period: 1 Time step: 198
Solving: Stress period: 1 Time step: 199
Solving: Stress period: 1 Time step: 200
Solving: Stress period: 1 Time step: 201
Solving: Stress period: 1 Time step: 202
Solving: Stress period: 1 Time step: 203
Solving: Stress period: 1 Time step: 204
Solving: Stress period: 1 Time step: 205
Solving: Stress period: 1 Time step: 206
Solving: Stress period: 1 Time step: 207
Solving: Stress period: 1 Time step: 208
Solving: Stress period: 1 Time step: 209
Solving: Stress period: 1 Time step: 210
Solving: Stress period: 1 Time step: 211
Solving: Stress period: 1 Time step: 212
Solving: Stress period: 1 Time step: 213
Solving: Stress period: 1 Time step: 214
Solving: Stress period: 1 Time step: 215
Solving: Stress period: 1 Time step: 216
Solving: Stress period: 1 Time step: 217
Solving: Stress period: 1 Time step: 218
Solving: Stress period: 1 Time step: 219
Solving: Stress period: 1 Time step: 220
Solving: Stress period: 1 Time step: 221
Solving: Stress period: 1 Time step: 222
Solving: Stress period: 1 Time step: 223
Solving: Stress period: 1 Time step: 224
Solving: Stress period: 1 Time step: 225
Solving: Stress period: 1 Time step: 226
Solving: Stress period: 1 Time step: 227
Solving: Stress period: 1 Time step: 228
Solving: Stress period: 1 Time step: 229
Solving: Stress period: 1 Time step: 230
Solving: Stress period: 1 Time step: 231
Solving: Stress period: 1 Time step: 232
Solving: Stress period: 1 Time step: 233
Solving: Stress period: 1 Time step: 234
Solving: Stress period: 1 Time step: 235
Solving: Stress period: 1 Time step: 236
Solving: Stress period: 1 Time step: 237
Solving: Stress period: 1 Time step: 238
Solving: Stress period: 1 Time step: 239
Solving: Stress period: 1 Time step: 240
Solving: Stress period: 1 Time step: 241
Solving: Stress period: 1 Time step: 242
Solving: Stress period: 1 Time step: 243
Solving: Stress period: 1 Time step: 244
Solving: Stress period: 1 Time step: 245
Solving: Stress period: 1 Time step: 246
Solving: Stress period: 1 Time step: 247
Solving: Stress period: 1 Time step: 248
Solving: Stress period: 1 Time step: 249
Solving: Stress period: 1 Time step: 250
Solving: Stress period: 1 Time step: 251
Solving: Stress period: 1 Time step: 252
Solving: Stress period: 1 Time step: 253
Solving: Stress period: 1 Time step: 254
Solving: Stress period: 1 Time step: 255
Solving: Stress period: 1 Time step: 256
Solving: Stress period: 1 Time step: 257
Solving: Stress period: 1 Time step: 258
Solving: Stress period: 1 Time step: 259
Solving: Stress period: 1 Time step: 260
Solving: Stress period: 1 Time step: 261
Solving: Stress period: 1 Time step: 262
Solving: Stress period: 1 Time step: 263
Solving: Stress period: 1 Time step: 264
Solving: Stress period: 1 Time step: 265
Solving: Stress period: 1 Time step: 266
Solving: Stress period: 1 Time step: 267
Solving: Stress period: 1 Time step: 268
Solving: Stress period: 1 Time step: 269
Solving: Stress period: 1 Time step: 270
Solving: Stress period: 1 Time step: 271
Solving: Stress period: 1 Time step: 272
Solving: Stress period: 1 Time step: 273
Solving: Stress period: 1 Time step: 274
Solving: Stress period: 1 Time step: 275
Solving: Stress period: 1 Time step: 276
Solving: Stress period: 1 Time step: 277
Solving: Stress period: 1 Time step: 278
Solving: Stress period: 1 Time step: 279
Solving: Stress period: 1 Time step: 280
Solving: Stress period: 1 Time step: 281
Solving: Stress period: 1 Time step: 282
Solving: Stress period: 1 Time step: 283
Solving: Stress period: 1 Time step: 284
Solving: Stress period: 1 Time step: 285
Solving: Stress period: 1 Time step: 286
Solving: Stress period: 1 Time step: 287
Solving: Stress period: 1 Time step: 288
Solving: Stress period: 1 Time step: 289
Solving: Stress period: 1 Time step: 290
Solving: Stress period: 1 Time step: 291
Solving: Stress period: 1 Time step: 292
Solving: Stress period: 1 Time step: 293
Solving: Stress period: 1 Time step: 294
Solving: Stress period: 1 Time step: 295
Solving: Stress period: 1 Time step: 296
Solving: Stress period: 1 Time step: 297
Solving: Stress period: 1 Time step: 298
Solving: Stress period: 1 Time step: 299
Solving: Stress period: 1 Time step: 300
Solving: Stress period: 1 Time step: 301
Solving: Stress period: 1 Time step: 302
Solving: Stress period: 1 Time step: 303
Solving: Stress period: 1 Time step: 304
Solving: Stress period: 1 Time step: 305
Solving: Stress period: 1 Time step: 306
Solving: Stress period: 1 Time step: 307
Solving: Stress period: 1 Time step: 308
Solving: Stress period: 1 Time step: 309
Solving: Stress period: 1 Time step: 310
Solving: Stress period: 1 Time step: 311
Solving: Stress period: 1 Time step: 312
Solving: Stress period: 1 Time step: 313
Solving: Stress period: 1 Time step: 314
Solving: Stress period: 1 Time step: 315
Solving: Stress period: 1 Time step: 316
Solving: Stress period: 1 Time step: 317
Solving: Stress period: 1 Time step: 318
Solving: Stress period: 1 Time step: 319
Solving: Stress period: 1 Time step: 320
Solving: Stress period: 1 Time step: 321
Solving: Stress period: 1 Time step: 322
Solving: Stress period: 1 Time step: 323
Solving: Stress period: 1 Time step: 324
Solving: Stress period: 1 Time step: 325
Solving: Stress period: 1 Time step: 326
Solving: Stress period: 1 Time step: 327
Solving: Stress period: 1 Time step: 328
Solving: Stress period: 1 Time step: 329
Solving: Stress period: 1 Time step: 330
Solving: Stress period: 1 Time step: 331
Solving: Stress period: 1 Time step: 332
Solving: Stress period: 1 Time step: 333
Solving: Stress period: 1 Time step: 334
Solving: Stress period: 1 Time step: 335
Solving: Stress period: 1 Time step: 336
Solving: Stress period: 1 Time step: 337
Solving: Stress period: 1 Time step: 338
Solving: Stress period: 1 Time step: 339
Solving: Stress period: 1 Time step: 340
Solving: Stress period: 1 Time step: 341
Solving: Stress period: 1 Time step: 342
Solving: Stress period: 1 Time step: 343
Solving: Stress period: 1 Time step: 344
Solving: Stress period: 1 Time step: 345
Solving: Stress period: 1 Time step: 346
Solving: Stress period: 1 Time step: 347
Solving: Stress period: 1 Time step: 348
Solving: Stress period: 1 Time step: 349
Solving: Stress period: 1 Time step: 350
Solving: Stress period: 1 Time step: 351
Solving: Stress period: 1 Time step: 352
Solving: Stress period: 1 Time step: 353
Solving: Stress period: 1 Time step: 354
Solving: Stress period: 1 Time step: 355
Solving: Stress period: 1 Time step: 356
Solving: Stress period: 1 Time step: 357
Solving: Stress period: 1 Time step: 358
Solving: Stress period: 1 Time step: 359
Solving: Stress period: 1 Time step: 360
Solving: Stress period: 1 Time step: 361
Solving: Stress period: 1 Time step: 362
Solving: Stress period: 1 Time step: 363
Solving: Stress period: 1 Time step: 364
Solving: Stress period: 1 Time step: 365
Solving: Stress period: 1 Time step: 366
Solving: Stress period: 1 Time step: 367
Solving: Stress period: 1 Time step: 368
Solving: Stress period: 1 Time step: 369
Solving: Stress period: 1 Time step: 370
Solving: Stress period: 1 Time step: 371
Solving: Stress period: 1 Time step: 372
Solving: Stress period: 1 Time step: 373
Solving: Stress period: 1 Time step: 374
Solving: Stress period: 1 Time step: 375
Solving: Stress period: 1 Time step: 376
Solving: Stress period: 1 Time step: 377
Solving: Stress period: 1 Time step: 378
Solving: Stress period: 1 Time step: 379
Solving: Stress period: 1 Time step: 380
Solving: Stress period: 1 Time step: 381
Solving: Stress period: 1 Time step: 382
Solving: Stress period: 1 Time step: 383
Solving: Stress period: 1 Time step: 384
Solving: Stress period: 1 Time step: 385
Solving: Stress period: 1 Time step: 386
Solving: Stress period: 1 Time step: 387
Solving: Stress period: 1 Time step: 388
Solving: Stress period: 1 Time step: 389
Solving: Stress period: 1 Time step: 390
Solving: Stress period: 1 Time step: 391
Solving: Stress period: 1 Time step: 392
Solving: Stress period: 1 Time step: 393
Solving: Stress period: 1 Time step: 394
Solving: Stress period: 1 Time step: 395
Solving: Stress period: 1 Time step: 396
Solving: Stress period: 1 Time step: 397
Solving: Stress period: 1 Time step: 398
Solving: Stress period: 1 Time step: 399
Solving: Stress period: 1 Time step: 400
Solving: Stress period: 1 Time step: 401
Solving: Stress period: 1 Time step: 402
Solving: Stress period: 1 Time step: 403
Solving: Stress period: 1 Time step: 404
Solving: Stress period: 1 Time step: 405
Solving: Stress period: 1 Time step: 406
Solving: Stress period: 1 Time step: 407
Solving: Stress period: 1 Time step: 408
Solving: Stress period: 1 Time step: 409
Solving: Stress period: 1 Time step: 410
Solving: Stress period: 1 Time step: 411
Solving: Stress period: 1 Time step: 412
Solving: Stress period: 1 Time step: 413
Solving: Stress period: 1 Time step: 414
Solving: Stress period: 1 Time step: 415
Solving: Stress period: 1 Time step: 416
Solving: Stress period: 1 Time step: 417
Solving: Stress period: 1 Time step: 418
Solving: Stress period: 1 Time step: 419
Solving: Stress period: 1 Time step: 420
Solving: Stress period: 1 Time step: 421
Solving: Stress period: 1 Time step: 422
Solving: Stress period: 1 Time step: 423
Solving: Stress period: 1 Time step: 424
Solving: Stress period: 1 Time step: 425
Solving: Stress period: 1 Time step: 426
Solving: Stress period: 1 Time step: 427
Solving: Stress period: 1 Time step: 428
Solving: Stress period: 1 Time step: 429
Solving: Stress period: 1 Time step: 430
Solving: Stress period: 1 Time step: 431
Solving: Stress period: 1 Time step: 432
Solving: Stress period: 1 Time step: 433
Solving: Stress period: 1 Time step: 434
Solving: Stress period: 1 Time step: 435
Solving: Stress period: 1 Time step: 436
Solving: Stress period: 1 Time step: 437
Solving: Stress period: 1 Time step: 438
Solving: Stress period: 1 Time step: 439
Solving: Stress period: 1 Time step: 440
Solving: Stress period: 1 Time step: 441
Solving: Stress period: 1 Time step: 442
Solving: Stress period: 1 Time step: 443
Solving: Stress period: 1 Time step: 444
Solving: Stress period: 1 Time step: 445
Solving: Stress period: 1 Time step: 446
Solving: Stress period: 1 Time step: 447
Solving: Stress period: 1 Time step: 448
Solving: Stress period: 1 Time step: 449
Solving: Stress period: 1 Time step: 450
Solving: Stress period: 1 Time step: 451
Solving: Stress period: 1 Time step: 452
Solving: Stress period: 1 Time step: 453
Solving: Stress period: 1 Time step: 454
Solving: Stress period: 1 Time step: 455
Solving: Stress period: 1 Time step: 456
Solving: Stress period: 1 Time step: 457
Solving: Stress period: 1 Time step: 458
Solving: Stress period: 1 Time step: 459
Solving: Stress period: 1 Time step: 460
Solving: Stress period: 1 Time step: 461
Solving: Stress period: 1 Time step: 462
Solving: Stress period: 1 Time step: 463
Solving: Stress period: 1 Time step: 464
Solving: Stress period: 1 Time step: 465
Solving: Stress period: 1 Time step: 466
Solving: Stress period: 1 Time step: 467
Solving: Stress period: 1 Time step: 468
Solving: Stress period: 1 Time step: 469
Solving: Stress period: 1 Time step: 470
Solving: Stress period: 1 Time step: 471
Solving: Stress period: 1 Time step: 472
Solving: Stress period: 1 Time step: 473
Solving: Stress period: 1 Time step: 474
Solving: Stress period: 1 Time step: 475
Solving: Stress period: 1 Time step: 476
Solving: Stress period: 1 Time step: 477
Solving: Stress period: 1 Time step: 478
Solving: Stress period: 1 Time step: 479
Solving: Stress period: 1 Time step: 480
Solving: Stress period: 1 Time step: 481
Solving: Stress period: 1 Time step: 482
Solving: Stress period: 1 Time step: 483
Solving: Stress period: 1 Time step: 484
Solving: Stress period: 1 Time step: 485
Solving: Stress period: 1 Time step: 486
Solving: Stress period: 1 Time step: 487
Solving: Stress period: 1 Time step: 488
Solving: Stress period: 1 Time step: 489
Solving: Stress period: 1 Time step: 490
Solving: Stress period: 1 Time step: 491
Solving: Stress period: 1 Time step: 492
Solving: Stress period: 1 Time step: 493
Solving: Stress period: 1 Time step: 494
Solving: Stress period: 1 Time step: 495
Solving: Stress period: 1 Time step: 496
Solving: Stress period: 1 Time step: 497
Solving: Stress period: 1 Time step: 498
Solving: Stress period: 1 Time step: 499
Solving: Stress period: 1 Time step: 500
Run end date and time (yyyy/mm/dd hh:mm:ss): 2024/07/04 3:27:38
Elapsed run time: 1 Minutes, 8.922 Seconds
Normal termination of simulation.
Plotting model results...
